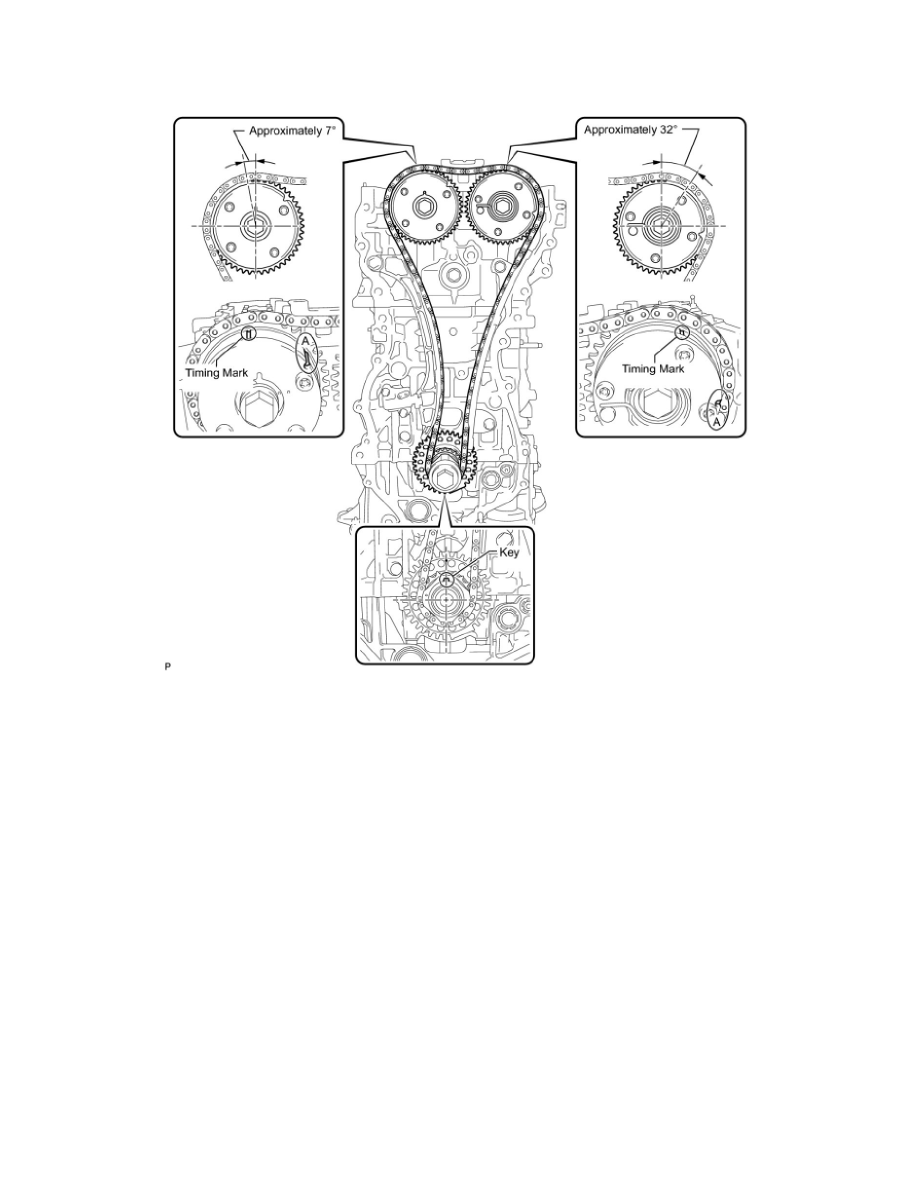

Timing Component Alignment Marks: Locations

Timing Component Alignment Marks

HINT:  "A" is not a timing mark.
