Venza FWD L4-2.7L (1AR-FE) (2009)

  • Maintenance
  • Timing Component Alignment Marks
  • Component Information
  • Locations

Page 1
background image

Timing Component Alignment Marks: Locations

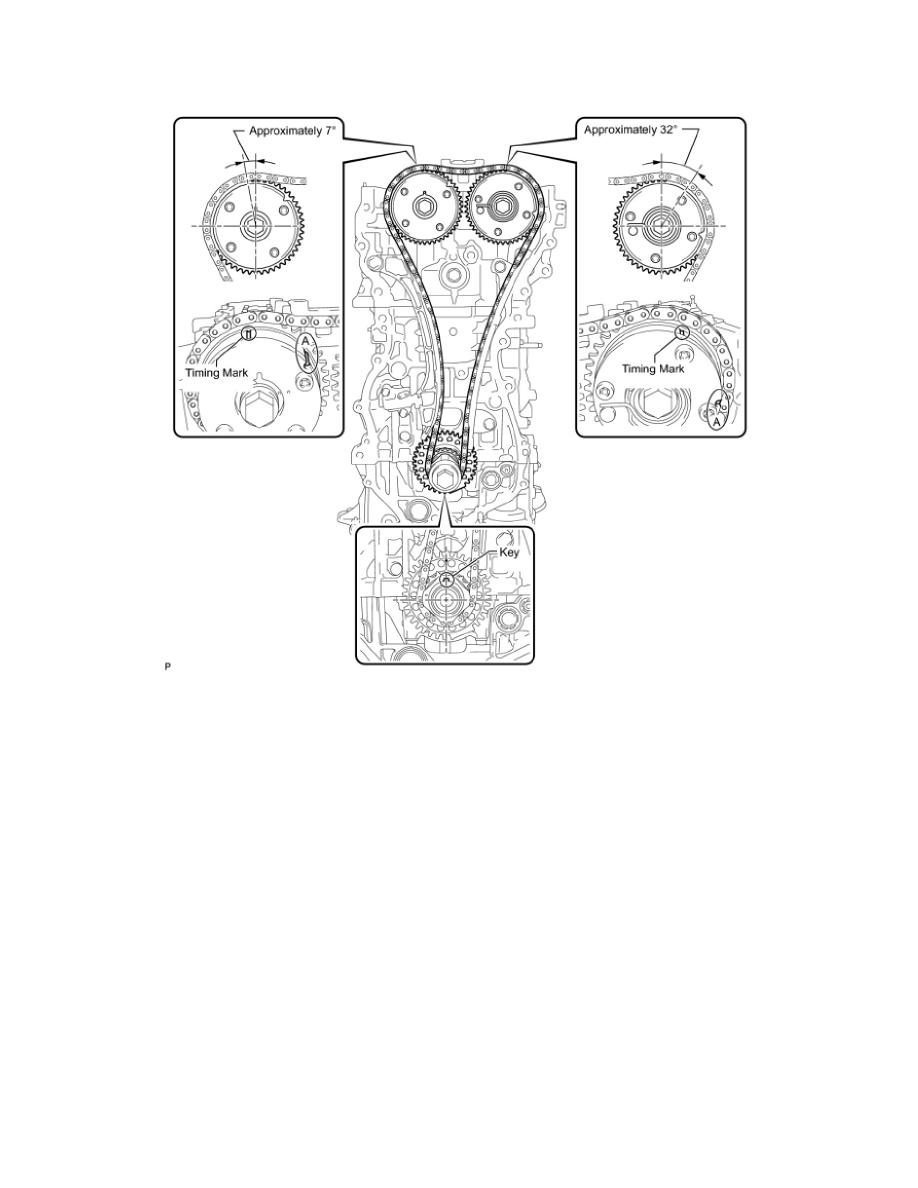

Timing Component Alignment Marks

HINT:  "A" is not a timing mark.
