Venza FWD V6-3.5L (2GR-FE) (2010)
/Page-565001.png)
Cabin Air Filter: Service and Repair
1. Vehicles with smart key system: Turn the "ENGINE START STOP" switch off. Vehicles without smart key system: Turn the engine switch to the
"LOCK" position.

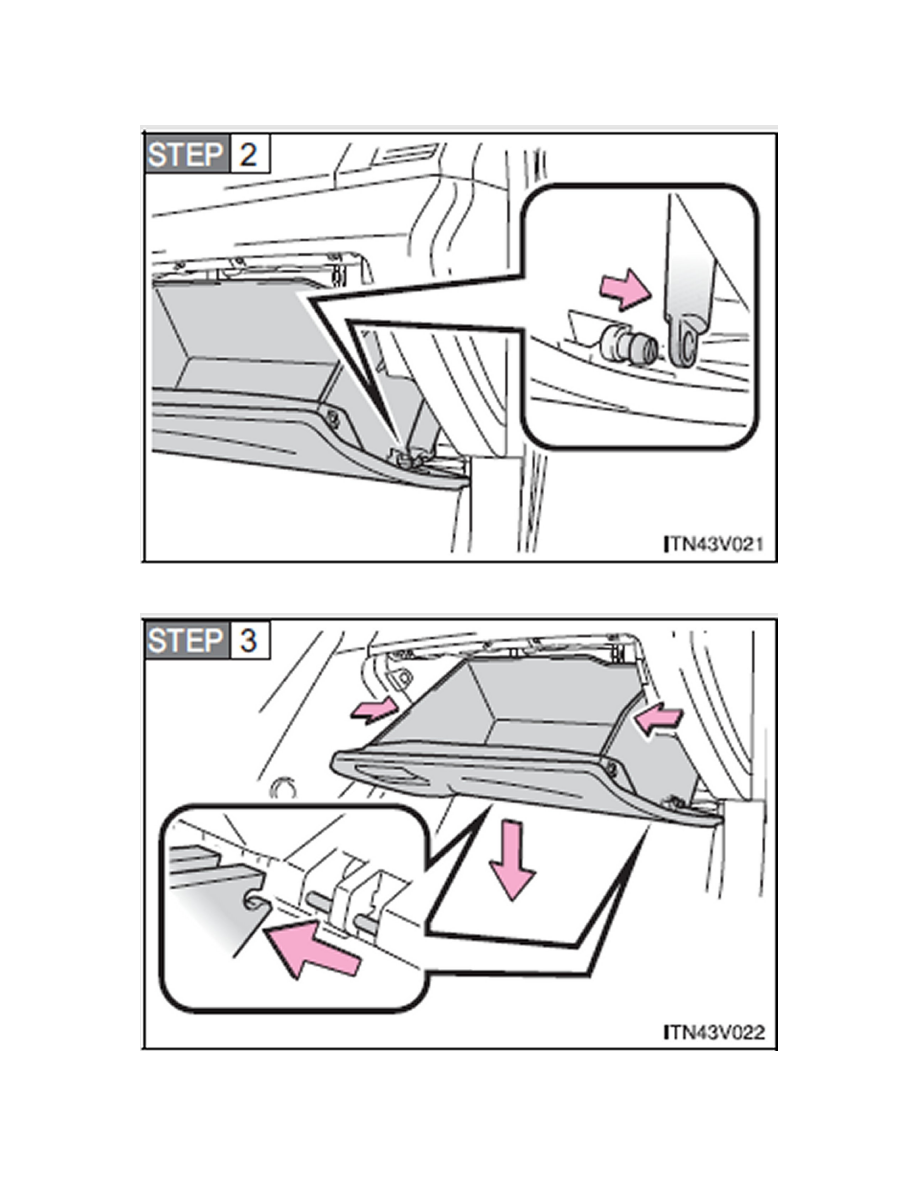

2. Open the glove box. Slide off the damper.
3. Push each side of the glove box to release the pins. Then disconnect the claws at the bottom and remove the glove box.
