Yaris L4-1.5L (1NZ-FE) (2007)
/Page-353001.png)
Brake Bleeding: Service and Repair
BRAKE FLUID
BLEEDING
NOTICE: Immediately wash off any brake fluid that comes into contact with any painted surfaces.
HINT: If any work is done on the brake system or if air in the brake lines is suspected, bleed the air from the system.

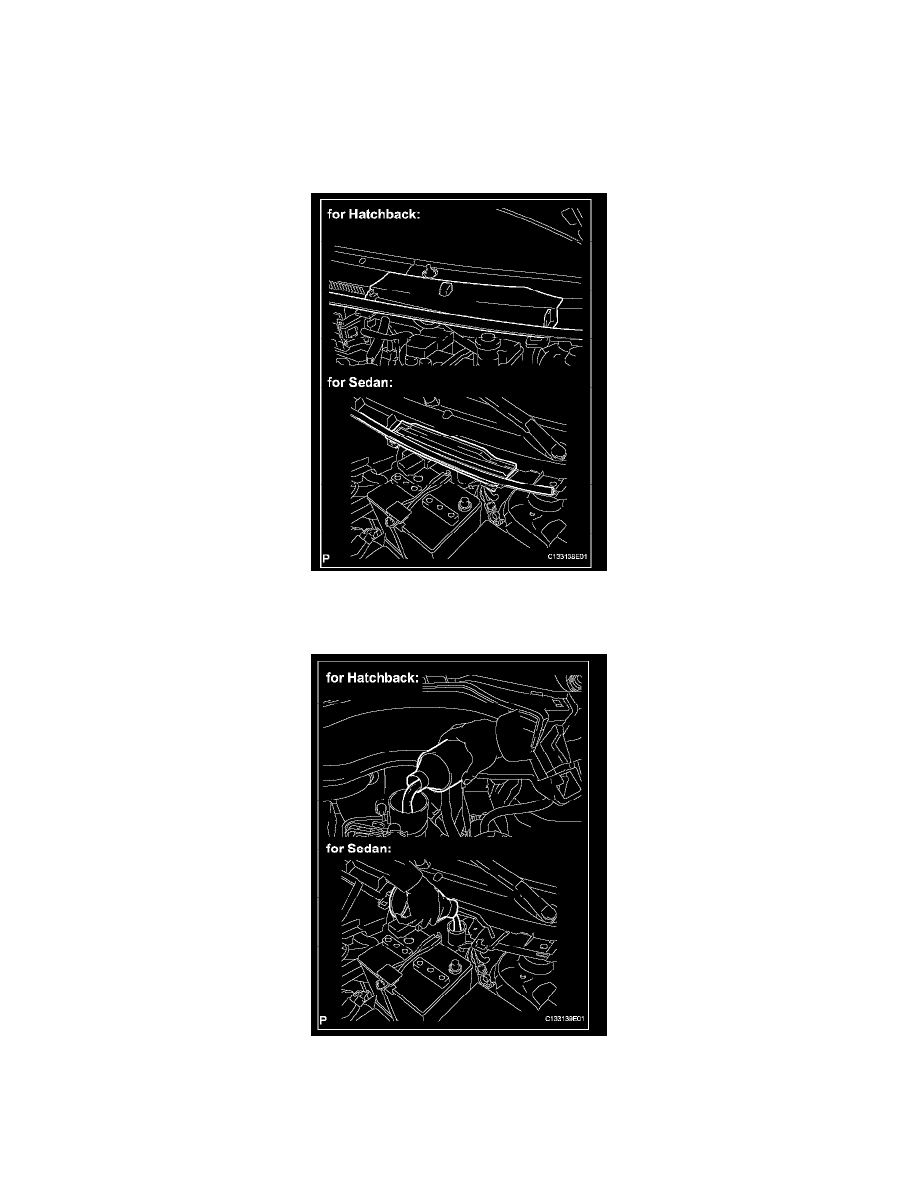

1. FILL RESERVOIR WITH BRAKE FLUID
(a)
Disengage the 3 clips and separate the hood to cowl top seal.
(b) Remove the cowl top ventilator louver.
(c)
Set the brake fluid can upside down on the reservoir.
Fluid: SAE J1703 or FMVSS No. 116 DOT3
2. BLEED MASTER CYLINDER
