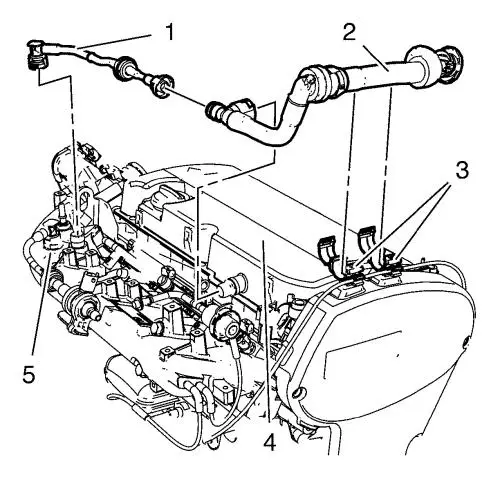

Positive Crankcase Ventilation Pipe Installation (1.6L
LLU)
1. |
Connect the 2 parts of the
positive crankcase ventilation pipe (1, 2). |
2. |
Install the positive crankcase
ventilation pipe (1, 2) to the camshaft cover (4) and intake
manifold (5). |
3. |
Clip in the positive crankcase
ventilation tube to the positive crankcase ventilation tube
brackets (3). |
|
