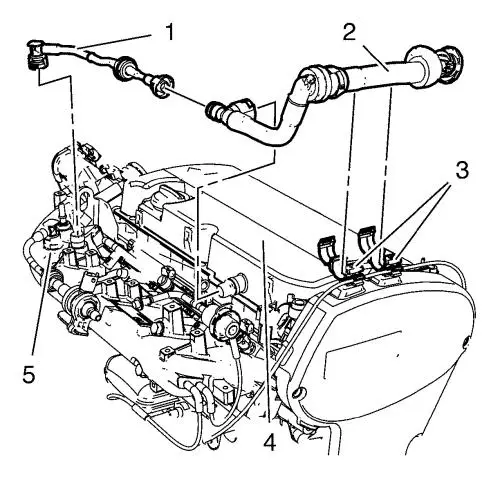

Positive Crankcase Ventilation Pipe Removal (1.6L LLU)
1. |
Uncap the positive crankcase
ventilation tube brackets (3). |
2. |
Disconnect the positive
crankcase ventilation tube (1, 2) from the intake manifold (5) and
camshaft cover (4). |
3. |
Remove the positive crankcase
ventilation tube (1, 2). |
4. |
Separate the positive
crankcase ventilation tube in their 2 parts (1, 2). |
|
