Astra J
Engine
Engine mechanics - 1.7L Diesel (LPL, LPV, LUB) / Repair Instructions
Belt Idler Pulley Installation
Belt Idler Pulley Installation

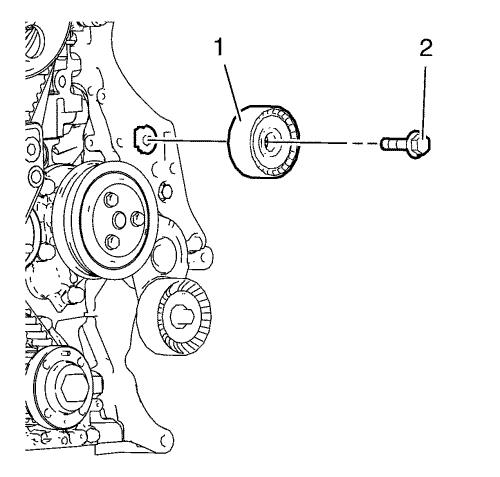

1.
Install the belt idler pulley (1).
Caution:
Refer to
Fastener Caution
.
2.
Install the belt idler pulley bolt (2) and tighten to
50 N·m (37 lb ft)
.
