Water Inlet Installation (1.7L Diesel LPL, LPV, LUB, LUD,
LUE)
1. |

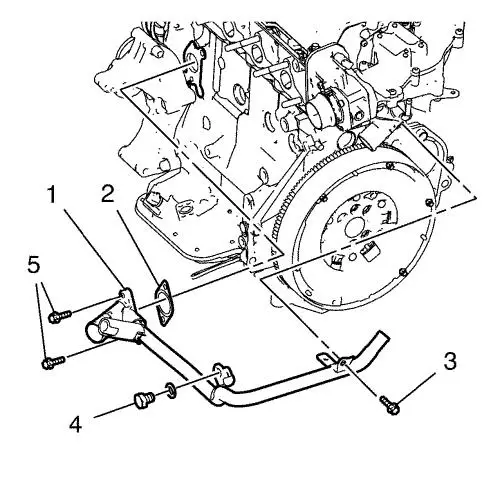

Install the water inlet along
with the water pipe (1), using a NEW gasket (2). |
2. |
Loosely install the 2 water
inlet bolts (5) and the water pipe bolts (3, 4). |
3. |
Tighten the 2 water inlet
bolts (5) to 24 N·m (18 lb ft) .
|
4. |
Tighten the water pipe bolt
(4) to 95 N·m (70 lb ft) . |
5. |
Tighten the water pipe bolt
(3) to 24 N·m (18 lb ft) . |
|
