Special Tools and Equipment: Special tools

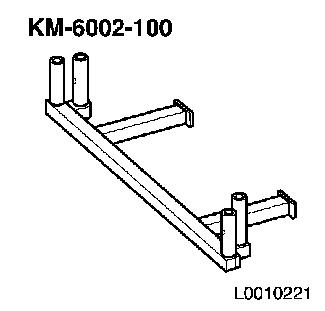

KM-6002-100

Adapter for KM-6002

To remove/install and align the rear axle with the underside of the vehicle, with KM-6002, KM-904 and hydraulic jack. KM-6002-100 replaces existing tool part of KM-6002.

Meriva (also for Combo-C, Astra-G and Zafira)

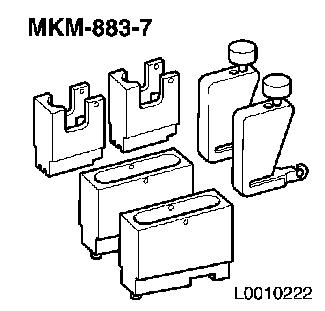

MKM-883-7

Adapter set for MKM-883-1

To hold the engine

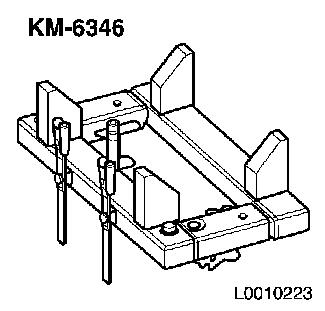

KM-6346

Installer/remover

To remove/install the CNG tank modules for maintenance, repair and replacement, in conjunction with KM-904 and hydraulic lift

Astra-CNG (Caravan only)

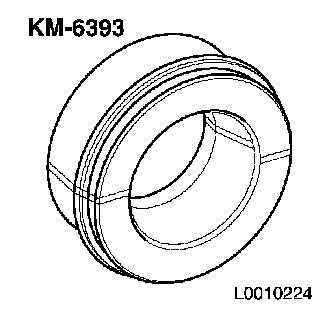

KM-6393

Remover

To press out bearings from inner bevel pinion (without collar), in conjunction with KM-6118-1 of tool KM-6118.

Omega-B rear differential

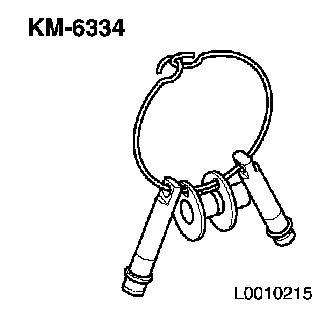

KM-6334

Seal plug

To seal the oil cooling pipe connections on the pipe and transmission side

VT20-E (CVT transmission)

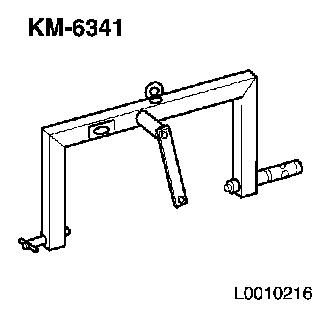

KM-6341

Transmission holder

To support the transmission when removing and installing it from/on the engine and when working on the transmission, in conjunction with KM-113-2

VT20-E (CVT transmission)

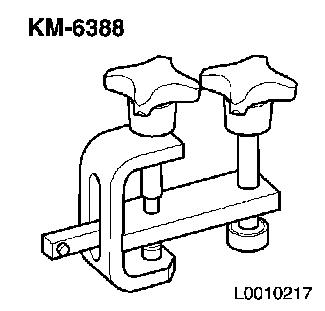

KM-6388

Holder

For securing the torque converter to prevent it from falling out

First use: VT20-E (CVT transmission)

Additional applications: AF23 and AF33, AF13 and AF17, AF20 and AF22, 5L40E (Omega) and AR25 and AR35

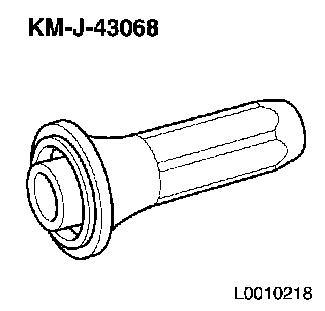

KM-J-43068

Installer

To install radial shaft seal in transmission housing (axle shafts)

VT20E (CVT transmission)

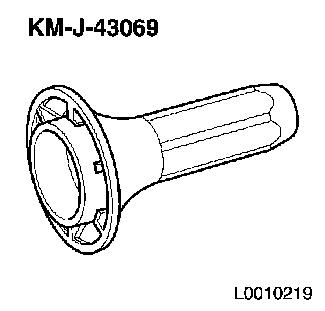

KM-J-43069

Installer

To install the seal ring on the torque converter

VT20E (CVT transmission)

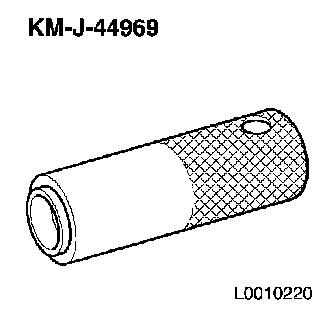

KM-J-44969

Installer

To install the sealing ring on the selector lever position switch

VT20E (CVT transmission)

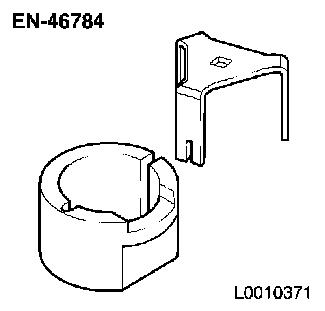

EN-46784

Installer and remover

For holding the fuel filter housing outside the vehicle when opening and closing (with a torque of 30 Nm) the screw seal cap.

Z 13 DT diesel engine

First use: Corsa-C, Agila
