Special tool
Meriva, Corsa-C "bad road package", Combo-C
When the Corsa-C was introduced in 2001, newly-developed special
tools for the front axle body, KM-6168
and KM-6169 , were supplied at order
class 2 conditions, among other things.
These special tools were developed to support the engine and the
transmission during removal and installation and precisely align
these assemblies in relation to the chassis to prevent vibration
and noise.
The shape of the front axle body had to be modified to improve
the crash behaviour of the vehicles and comply with the latest
crash standards.
As a result of these modifications, the existing special tools
for the front axle body cannot be used properly on certain Corsa-C
variants (Corsa-C with "bad road package", Combo-C as of MY 2005,5
and Meriva).
After weighing up various technical alternatives and the tool
costs it was finally decided to give priority to developing brand
new tools rather than retrofit kits and provide these at
preferential conditions to dealers that have already received
special tools KM-6168 and KM-6169 .
The two retrofit kits for the two Corsa-C tools that have
already been introduced are shown below.
|
KM-6168-50
Centring bolt for KM-6168
Removal/installation of front axle and alignment of subframe to
vehicle underbody, in combination with KM-6168, MK-904 and
hydraulic jack.
(Initial deployment: Meriva, Corsa-C "bad road package",
Combo-C)
|
|
|
KM-6394-100
For fixing engine/transmission to subframe with components of
KM-6169 when working at engine timing side, and
removal/installation of transmission in combination with KM-6168-A,
KM-904 and hydraulic jack.
(Initial deployment: Meriva, Corsa-C "bad road package",
Combo-C)
|
|
Cross Carline
|
KM-6353
Spreading tool
Removal of ball joint from steering knuckle
(Initial deployment: Agila)
|
|
|
KM-6393
Removal tool
Pushing out bearing from inner bevel drive pinion (without
collar) in combination with KM-6118-1 of tool KM-6118.
Omega-B rear axle transmission
|
|
|
KM-6395
Pipe spanner
Removal / installation of fuel tank connecting line
(Initial deployment: Astra-G Caravan with Z 16 YNG)
|
|
|

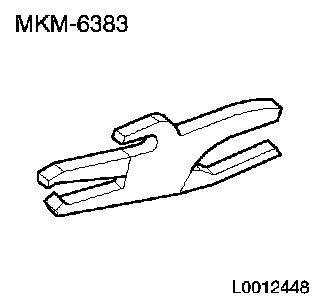

MKM-6383
Stripping pliers
Stripping CAN bus cables
(Initial deployment: Vectra-C, Signum)
|
|
Z 13 DT
|
EN-46775
Centring tool
Timing case cover alignment during installation
Z 13 DT diesel engine
(Initial deployment: Corsa-C, Agila)
|
|
|
EN-46776
Installation tool
Installation of crankshaft/oil pump sealing ring, engine timing
side
Z 13 DT diesel engine
(Initial deployment: Corsa-C, Agila)
|
|
|
EN-46781
Adjusting tool
Camshaft locking for testing and adjusting work (timing), in
combination with EN-46785
Z 13 DT diesel engine
(Initial deployment: Corsa-C, Agila)
|
|
|
EN-46782
Connecting piece
Compression pressure test, in combination with EN-46783 and
MotoMeter
Z 13 DT diesel engine
(Initial deployment: Corsa-C, Agila)
|
|
|
EN-46783
Adapter
Compression pressure test, in combination with EN-46782
Z 13 DT diesel engine
(Initial deployment: Corsa-C, Agila)
|
|
|
EN-46784
Removal / installation tool kit
Clamp fuel filter housing in vice outside vehicle to open and
close the threaded sealing cap (with torque of 30 Nm).
Z 13 DT diesel engine, Z 19 DT diesel engine and Z 19 DTH diesel
engine
(Initial deployment: Corsa-C, Agila, Vectra-C, Signum)
|
|
|
EN-46785
Centring pin
Flywheel locking for testing and adjusting work (timing) with
EN-46781
Z 13 DT diesel engine with F 17 and MTA transmission (F
17-based)
(Initial deployment: Corsa-C, Agila)
|
|
|
KM-412-32
Engine adapter
Engine mount for overhaul work, in combination with KM-412-A
Z 13 DT diesel engine
(Initial deployment: Corsa-C, Agila)
|
|
|

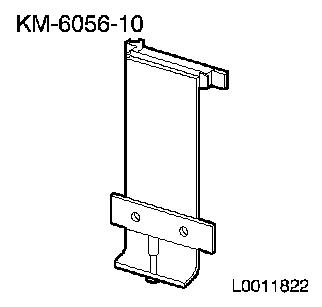

KM-6056-10
Adapter
Supporting Z 13 DT diesel engine with KM-6056 for removal and
installation, with KM-6056
(Initial deployment: Agila, LHD only)
|
|
|
KM-6289-100
Drilling template
Drilling additional threaded hole in KM-6289, for returning SAC
clutch (LUK) adjusting disk to Z 13 DT engine with MTA transmission
(F 17-based)
|
|
Z 19 DT and Z 19 DTH
|
EN-46784
Removal and installation tool kit
Clamp fuel filter housing in vice outside vehicle to open and
close the threaded sealing cap (with torque of 30 Nm).
Z 13 DT diesel engine, Z 19 DT diesel engine and Z 19 DTH diesel
engine
(Initial deployment: Corsa-C, Agila, Vectra-C, Signum)
|
|
|
EN-46788
Fixing tool
Crankshaft pulley fixing
Z 19 DT and Z 19 DTH diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|
EN-46789
Fixing tool
Camshaft fixing
Z 19 DTH diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|
EN-46790
Removal tool
Removing injection pump wheel
Z 19 DT and Z 19 DTH diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|
EN-46792
Flywheel bracket
Flywheel locking, transmission removed
Z 19 DT and Z 19 DTH diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|
EN-46793
Installation tool
Installation of oil pump sealing ring, front crankshaft
Z 19 DT and Z 19 DTH diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|

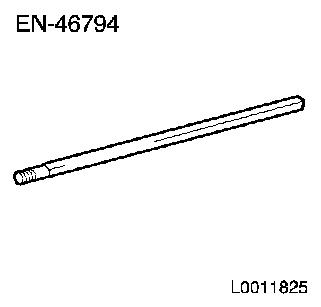

EN-46794
Socket wrench for M6
Removal and installation of oil sump bolts, in combination with
EN-46796
Z 19 DT and Z 19 DTH diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|
EN-46796
Socket wrench for M6
Removal and installation of oil sump bolts, in combination with
EN-46794
Z 19 DT and Z 19 DTH diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|
EN-46797
Valve compressor
Pressing down valve plunger, in combination with EN-46799
Z 19 DT diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|
EN-46799
Fixing tool
Fixing valve plunger in bottom position, in combination with
EN-46797
Z 19 DT diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|
KM-412-36
Engine adapter
Mounting engine in KM-412-A for overhaul work
Z 19 DT and Z 19 DTH diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|

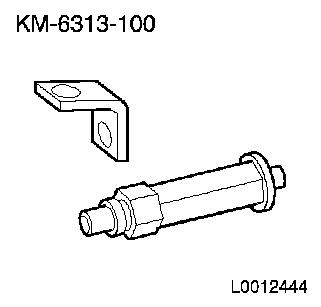

KM-6313-100
Engine support for KM-6313
Supporting engine for working at engine timing side and
removing/installing engine
Z 19 DT and Z 19 DTH diesel engine
(Initial deployment: Vectra-C, Signum)
|
|
|
