Replace shift connection / selector connection
clamping piece (F23)
 Remove
|
| 1. |
Remove shift actuation assembly
|
| 2. |
Dismantle clamping piece (shift connection)
| • |
Carefully knock clamping piece (2) from shift actuation
assembly using drift (1)
|
|
| 3. |

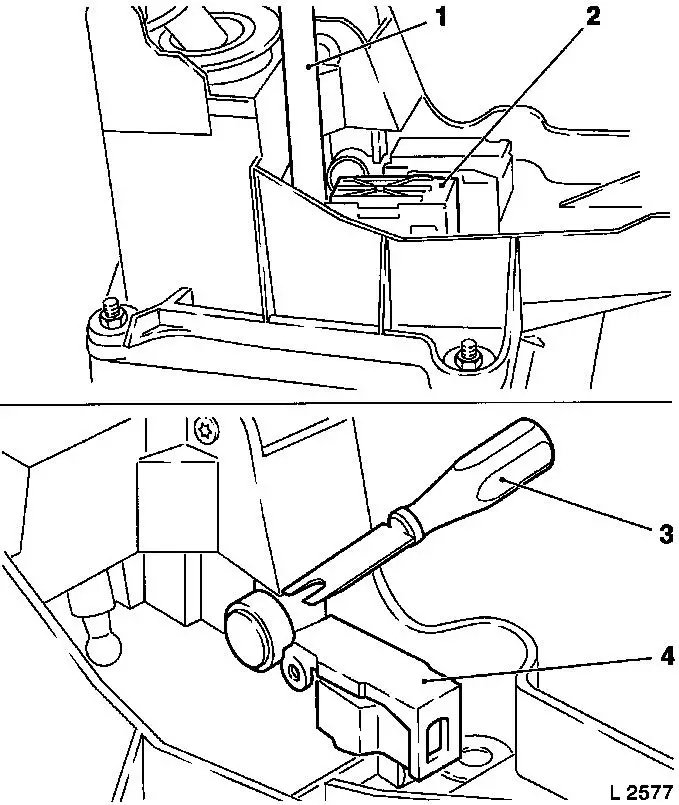

Dismantle clamping piece (selector connection)
| • |
Use KM-6065 (3) to lever clamping
piece (4) out of shift actuation assembly
|
|
|
Install
|
| 4. |
Assemble clamping piece (1) (selector connection)
Note: Push ball socket
from ball head
|
| 5. |
Assemble clamping piece (shift connection)
| • |
Carefully knock clamping piece with sleeve (3) and hammer (2)
onto shift actuation assembly (4)
Note: Ball socket must
be seated on ball head
|
|
| 6. |
Install shift actuation assembly
|
|
|
