Painting Repair Operations (Lettering): Repair Instructions

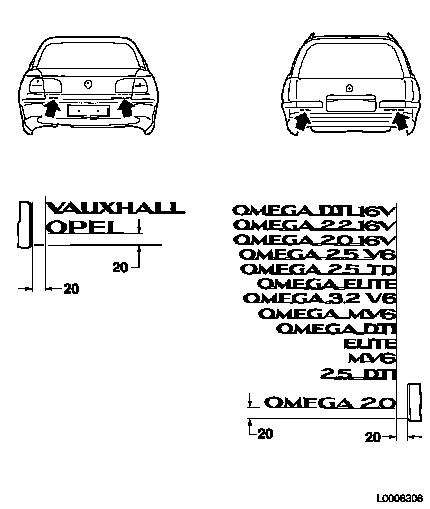

Luggage compartment lid – Models 25, 26, 27

Tailgate – Models 21, 22, 23

Dimensions apply for Opel and Vauxhall

  Measure

Attach light masking paper (20 mm) to crest lines shown.

All measurements in mm.

Caution

After attaching the lettering, remove masking tape. Do not use heavy textile adhesive tape.

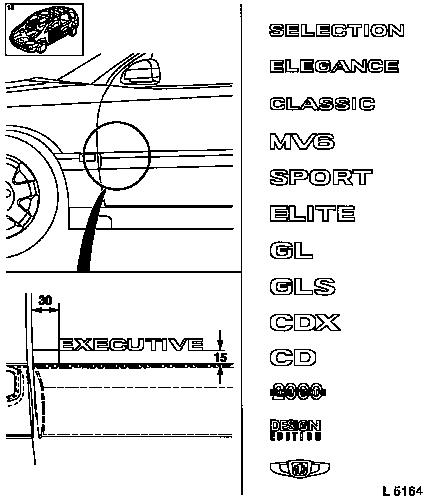

As of MY 2000: Front door

  Measure

Attach light paper masking tape (30 mm / 15 mm) to crest lines shown.

All measurements in mm.

Caution

After attaching the lettering, remove masking tape. Do not use heavy textile adhesive tape.
