Illustration - Brake System (Brake Caliper)

Make

Vauxhall

Model

Omega B

Section

Brake Caliper › Repair Instructions › Illustration - Brake System

BrakesIllustration - Brake System

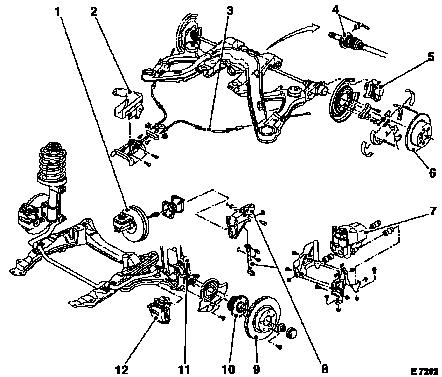

Illustration – Brake System 1. Brake servo with brake master cylinder 2. Parking brake lever 3. Parking brake cable 4. Rear pulse pickup with wheel sensor 5. Rear brake caliper 6. Rear brake disc 7. Hydraulic modulator 8. Brake pedal with brake pedal support 9. Front brake disc 10. Front wheel hub with pulse pickup 11. Front wheel sensor 12. Front brake caliper
