Special Service Tools (Steering) (ZF Servotronic Steering)

KM-108

Installer / Remover Drift

To remove and install steering shaft ball bearing

KM-146-01

Remover

To remove steering arm from steering arm shaft

KM-210-B

Puller

To remove steering wheel from steering shaft

KM-236-B

Remover

To remove joints from steering arm and idler arm

MKM-260

Ball Joint Remover

To remove the outer tie rods from centre tie rod

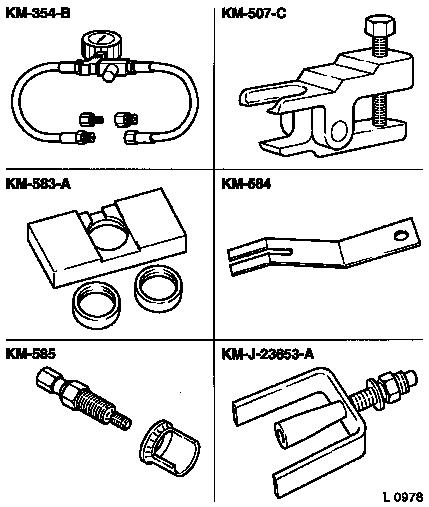

KM-354-B

Pressure Gauge

To check the fluid pressure of the power steering

KM-507-C

Remover

To press tie rod end out of steering knuckle or tie rod

KM-583-A

Adapter

With KM-J-23653-A

KM-584

Remover / Installer

To remove and install pressure spring for height adjustment, steering column with "height adjustable steering wheel"

KM-585

Remover

To pull fulcrum bearing pins out of bearing housing, steering column with "height adjustable steering wheel"

KM-J-23653-A

Counter Support

To remove and install circlip on steering shaft, steering column with "height adjustable steering wheel" in conjunction with KM-583-A
