Group
R-70 to R-75: only Vauxhall
Subject
Sound
Package
Vehicles
Omega-B
(only Saloon)
General
The
Sound Package is available exclusively together with Radios SC 804 CDC or CD
300 RDS. In addition to the standard equipment (8 loudspeakers), the Sound
Package offers a sound processor and two bass loudspeakers.
The
sound processor is optimally tuned to the acoustics of the Omega-B Saloon. It
consists of an amplifier and an equaliser which is pre-set and cannot be
altered.
|
Location of Components in Vehicle
1 Treble speaker, front door, left
2 Radio
3 Treble speaker, front door, right
4 Wiring harness plug X7, instrument panel &
radio, rear
5 Wide band loudspeaker, front door, right
6 Treble speaker, rear door, right
7 Wide band loudspeaker, rear door, right
8 Bass loudspeaker, rear, right
9 CD changer
10 Bass loudspeaker, rear, left
11 Sound processor
12 Wide band loudspeaker, rear door, left
13 Treble speaker, rear door, left
14 Wide band loudspeaker, front door, left
15 Wiring harness plug X1, instrument panel &
body
|
|
Circuit
Diagram
(Excerpt
from Overall Circuit Diagram)
Unit
Identification Current
Path
E19 Heated
rear screen, antenna 1060
F4 Fuse,
CD changer 1077
F6 Fuse,
sound processor 1034
F12 Fuse,
instrument illumination -
H1 Radio 1045
H37 Wide
band loudspeaker, front door, left 1039
H38 Wide
band loudspeaker, front door, right 1044
H39 Wide
band loudspeaker, rear door, left 1048
H40 Wide
band loudspeaker, rear door, right 1052
H52 Treble
speaker, front door, left 1039
H53 Treble
speaker, front door, right 1044
H57 Treble
speaker, rear door, left 1048
H58 Treble
speaker, rear door, right 1052
H61 Bass
loudspeaker, rear, left 1037
H62 Bass
loudspeaker, rear, right 1040
U18 Amplifier,
antenna, rear screen 1060
U23 Sound
processor 1034
U24 CD
changer 1070
X1 Instrument
panel & body 1039
X7 Instrument
panel & radio, rear 1034
X11 Body
& driver's door 1039,
1044
X12 Body
& co-driver's door 1039, 1044
X13 Body
& rear door, left 1048
X14 Body
& rear door, right 1052
X15 Radio,
rear & Sound Package 1037
X23 Body
& tailgate 1056
Abbreviations
BEL Instrument
illumination
CD CD
changer
DWA Anti-theft
warning system
EMP Radio
HS Heated
rear screen
ID Info-Display
(TID/MID)
KW Estate
TEL Telephone
WEG Odometer
signal
|
|
|
|
Terminal Assignment
Sound Processor, 26-pin
1 Output (-), bass loudspeaker, rear, left
2 Output (-), bass loudspeaker, rear, right
3 Ground (Ter. 31)
4 Ground (Ter. 31)
5 Output (+) bass loudspeaker, rear, left
6 Output (+) bass loudspeaker, rear, right
7 Battery + (Ter. 30) from fuse F6
8 Battery + (Ter. 30) from fuse F6
9 Output (-), door loudspeaker, rear, right
10 Output (-), door loudspeaker, front, right
11 Output (-), door loudspeaker, front, left
12 Output (-), door loudspeaker, rear, left
13 Output (+), door loudspeaker, rear, right
14 Output (+), door loudspeaker, front, right
15 Output (+), door loudspeaker, front, left
16 Output (+), door loudspeaker, rear, left
17 Input, audio ground from radio (pin 9)
18 Not occupied
19 Not occupied
20 Not occupied
21 Input, sound processor ON/OFF from radio (pin
7)
22 Input, audio signal, rear right, from radio
(pin 13)
23 Input, audio signal, front right, from radio
(pin 14)
24 Input, audio signal, front left, from radio
(pin 15)
25 Input, audio signal, rear left, from radio (pin
16)
26 Ground (Ter. 31)
|
|
|
Radios SC 804 CDC/CD 300 RDS, 26-pin
1 Ground, signal output to anti-theft warning
system
2 Ignition ON (Ter. 15)
3 Voltage supply for illumination from dimmer,
instrument illumination (Ter. 58d)
4 Ground (Ter. 31)
5 Input, odometer signal
6 Input, radio mute function from telephone
7 ON/OFF circuit output for sound processor (pin
21), CD changer (pin 6), antenna amplifier, MID/TID, telephone
8 Battery + (Ter. 30) from fuse F12
9 Output, audio ground to sound processor (pin
17)
10 Not occupied
11 Not occupied
12 Not occupied
13 Output, audio signal, rear right, to sound
processor (pin 22)
14 Output, audio signal, front right, to sound
processor (pin 23)
15 Output, audio signal, front left, to sound
processor (pin 24)
16 Output, audio signal, rear left, to sound
processor (pin 25)
17 Data lead SCL to MID/TID
18 Data lead MRQ to MID/TID
19 Not occupied
20 Input, audio ground from CD changer (pin 2)
21 Input, audio signal, right, from CD changer
(pin 3)
22 Data lead SDA to MID/TID
23 Ground (Ter. 31)
24 Data lead + D2 B to CD changer (pin 9)
25 Data lead - D2 B to CD changer (pin 7)
26 Input, audio signal, left, from CD changer (pin
1)
|
|
|
CD Changer, 9-pin
1 Output, audio signal, left, to radio (pin 26)
2 Output, audio ground to radio (pin 20)
3 Output, audio signal, right, to radio (pin 21)
4 Ground (Ter. 31)
5 Battery + (Ter. 30) from fuse F4
6 Input, CD changer ON/OFF from radio (pin 7)
7 - D2 B data lead from radio (pin 25)
8 Ground, data lead from radio
9 + D2 B data lead from radio (pin 24)
|
|
|
42-pin Wiring Harness Plug, Instrument Panel & Radio, Rear, X7
(footwell,
front right)
3 Audio ground from radio to sound processor
4 Battery + (Ter. 30) for sound processor from
fuse F6
8 Radio mute function from telephone
10 Audio signal, rear right, from radio to sound
processor
12 Audio signal, front left, from radio to sound
processor
14 Audio signal, front right, from radio to sound
processor
16 Audio signal, rear left, from radio to sound
processor
17 Control lead from radio to CD changer ON/OFF
18 Control lead from radio to telephone ON/OFF
21 Ground (Ter. 31) for sound processor
25 Control lead from radio to sound processor
ON/OFF
26 Audio (-) from sound processor to loudspeaker,
rear door, right
27 Audio (+) from sound processor to loudspeaker,
rear door, right
28 Audio (-) from sound processor to loudspeaker,
front door, left
29 Audio (+) from sound processor to loudspeaker,
front door, left
30 Audio (-) from sound processor to loudspeaker,
front door, right
31 Audio (+) from sound processor to loudspeaker,
front door, right
32 Audio (-) from sound processor to loudspeaker,
rear door, left
33 Audio (+) from sound processor to loudspeaker,
rear door, left
34 Ground, data lead from radio to CD changer
35 Audio ground from CD changer to radio
36 - D2B data lead from radio to CD changer
37 + D2B data lead from radio to CD changer
38 Ground (Ter. 31) for sound processor
39 Audio signal, right, from CD changer to radio
40 Audio signal, left, from CD changer to radio
41 Battery + (Ter. 30) for CD changer from fuse F4
42 Ground (Ter. 31) for CD changer
|
|
|
|
|
Technical
Data
Sound
processor - pre-set equaliser with integrated amplifier
Frequency
range: 20-20,000 Hz
Power: 4
x 20 watt (door loudspeakers)
2 x
40 watt (bass speakers)
Total
harmonic distortion: below 0.1 %
Signal
noise interval: above 80 dB
Channel
voice-over damping: above 40 dB
Weight: approx.
1.5 kg
Dimensions: 200
x 55 x 165 (mm)
|

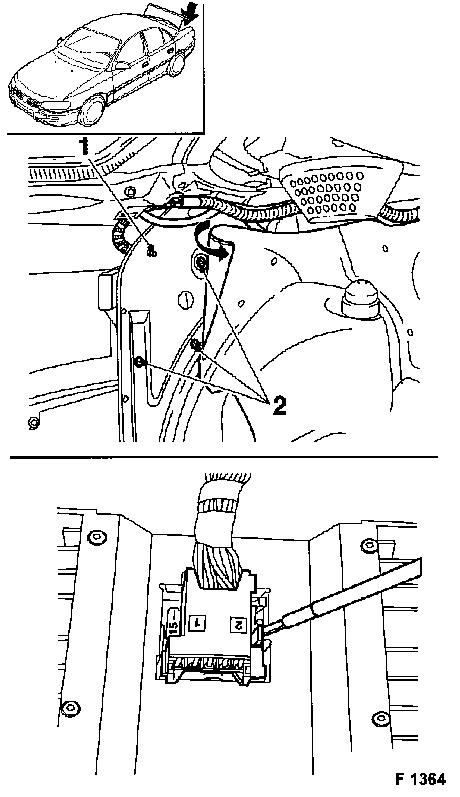

Sound Processor, Remove and Install
- Open luggage compartment lid.
- Remove spare wheel cover.
- Detach spare wheel and remove.
- Push wiring harness bracket (1) to the left.
- Pull inner rear left quarter panel forwards
(arrow).
- Loosen fastening bolts (2), do not unscrew.
- Push sound processor approx. 10 mm backwards,
then to the left (guide bolt heads through fastening holes) into space
between inner and outer rear left quarter panel.
- Remove sound processor backwards.
Release
and remove wiring harness plug as shown in illustration F 1364 (below).
Install
analogously in reversed order.
|
|
Checking
Procedures
In
the event of customer complaints, subject voltage supply and loudspeakers
including wiring to a quick check according to the checking procedures before
replacing the sound processor.
Before
performing the check, remove sound processor as described and check that the
wiring harness plug is correctly connected and that the catch is properly
engaged.
If
the fault is not eliminated by this, find the required test steps from the
fault description in the trouble-shooting chart.
Trouble-shooting
Chart
Before
trouble-shooting, switch off radio, release and remove sound processor wiring
harness plug. Inspect plug contacts of wiring harness plug.
|
Designation
|
Test Step
|
|
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
|
|
No
function of sound processor
|
·
|
·
|
·
|
|
|
|
|
|
|
|
|
No
function of one or both bass loudspeakers
|
|
|
|
·
|
·
|
|
|
|
|
|
|
No
function of loudspeaker in driver's door
|
|
|
|
|
|
·
|
|
|
|
|
|
No
function of loudspeaker in co-driver's door
|
|
|
|
|
|
|
·
|
|
|
|
|
No
function of loudspeaker in left rear door
|
|
|
|
|
|
|
|
·
|
|
|
|
No
function of loudspeaker in right rear door
|
|
|
|
|
|
|
|
|
·
|
|
|
Test Step
|
Tester Multimeter
|
Test
|
Notes
|
Nominal Value
|
|
|
|
MKM-587-A
|
|
between
|
|
|
|
|
|
|
from
|
|
|
|
|
|
|
1
|
Ohmmeter,
range 200 W
|
Fuse
in sound processor
|
Ter.
1
|
Ter.
2
|
· Remove fuse beside sound processor plug.
· Measurement between both contacts of fuse.
|
approx.
0 W
|
|
|
|
Possible
faults:
(If
nominal value is not attained)
Fuse
in sound processor defective.
|
|
2
|
Voltmeter,
range 20 V, DC
|
Voltage
supply to sound processor
|
Ter.
3
Ter.
3
Ter.
4
Ter.
4
|
Ter.
7
Ter.
8
Ter.
7
Ter.
8
|
· Measurements in sound processor wiring harness plug
|
higher
than 11,5 V
higher
than 11,5 V
higher
than 11,5 V
higher
than 11,5 V
|
|
|
|
Possible
faults:
(If
nominal value is not attained)
Fuse
F6 defective.
Interruption
in instrument panel wiring harness between fuse F6 and wiring harness plug
X7/Ter. 4.
Interruption
in instrument panel wiring harness between grounding point 11 (on steering
bracket) and wiring harness plug X7/Ter. 21.
Grounding
point 11 corroded.
Interruption
in radio wiring harness, rear, between wiring harness plug X7 and sound
processor wiring harness plug.
Wiring
harness plug X7 (instrument panel & radio, rear) disconnected.
|
|
3
|
Ohmmeter,
range 200 W
|
Bridges in sound processor
wiring harness plug
|
Ter.
7
Ter.
3
|
Ter.
8
Ter.
4
|
· Measurements in sound processor wiring harness plug
|
approx.
0 W
approx.
0 W
|
|
|
|
Possible
faults:
(If
nominal value is not attained)
Bridge
in sound processor wiring harness plug between Ter. 3 and Ter. 4 interrupted.
Bridge
in sound processor wiring harness plug between Ter. 7 and Ter. 8 interrupted.
|
|
4
|
Ohmmeter,
range 200 W
|
Bass
loudspeaker, rear, left, loudspeaker lead
|
Ter.
1
|
Ter.
5
|
· Measurements in sound processor wiring harness plug
|
6,5
- 7,5 W
|
|
|
|
Possible
faults:
(If
nominal value is not attained)
Interruption
in radio wiring harness, rear, between sound processor wiring harness plug
and bass loudspeaker, rear left.
Wiring
harness plug at bass loudspeaker, rear left, disconnected.
Bass
loudspeaker, rear left, defective.
|
|
5
|
Ohmmeter,
range 200 W
|
Bass
loudspeaker, rear right, loudspeaker lead
|
Ter.
2
|
Ter.
6
|
· Measurements in sound processor wiring harness plug
|
6,5
- 7,5 W
|
|
|
|
Possible
faults:
(If
nominal value is not attained)
Interruption
in radio wiring harness, rear, between sound processor wiring harness plug
and bass loudspeaker, rear right.
Wiring
harness plug at bass loudspeaker, rear right, disconnected.
Bass
loudspeaker, rear right, defective.
|
|
6
|
Ohmmeter,
range 200 W
|
Door
loudspeakers and their leads (front door, left)
|
Ter.
11
|
Ter.
15
|
· Measurements in sound processor wiring harness plug
|
3
- 4 W
|
|
|
|
Possible
faults:
(If
nominal value is not attained)
Interruption
in radio wiring harness, rear, between sound processor wiring harness plug
and wiring harness plug X7.
Wiring
harness plug X7 (instrument panel & radio, rear) disconnected.
Interruption
in instrument panel between wiring harness plug X7 and wiring harness plug
X1.
Wiring
harness plug X1 (instrument panel & body) disconnected.
Interruption
in body wiring harness between wiring harness plug X1 and wiring harness plug
X11* (front door, left).
Wiring
harness plug X11* (front door, left) disconnected.
Interruption
in front door wiring harness, left, between wiring harness plug X11* and
loudspeaker, front door, left.
Wiring
harness plug at loudspeaker, front door, left, disconnected.
Loudspeaker,
front door, left, defective.
*)
X12 on RHD
|
|
7
|
Ohmmeter,
range 200 W
|
Door
loudspeakers and their leads (front door, right)
|
Ter.
10
|
Ter.
14
|
· Measurements in sound processor wiring harness plug
|
3
- 4 W
|
|
|
|
Possible
faults:
(If
nominal value is not attained)
Interruption
in radio wiring harness, rear, between sound processor wiring harness plug
and wiring harness plug X7.
Wiring
harness plug X7 (instrument panel & radio, rear) disconnected.
Interruption
in instrument panel wiring harness between wiring harness plug X7 and wiring
harness plug X1.
Wiring
harness plug X1 (instrument panel & body) disconnected.
Interruption
in body wiring harness between wiring harness plug X1 and wiring harness plug
X12* (front door, right).
Wiring
harness plug X12* (front door, right) disconnected.
Interruption
in front door wiring harness, right, between wiring harness plug X12* and
loudspeaker, front door, right.
Wiring
harness plug at loudspeaker, front door, right, disconnected.
Loudspeaker,
front door, right, defective.
*)
X11 on RHD
|
|
8
|
Ohmmeter,
range 200 W
|
Door
loudspeakers and their leads (rear door, left)
|
Ter.
12
|
Ter.
16
|
· Measurements in sound processor wiring harness plug
|
3,5
- 4,5 W
|
|
|
|
Possible
faults:
(If
nominal value is not attained)
Interruption
in radio wiring harness, rear, between sound processor wiring harness plug
and wiring harness plug X7.
Wiring
harness plug X7 (instrument panel & radio, rear) disconnected.
Interruption
in instrument panel wiring harness between wiring harness plug X7 und wiring
harness plug X1.
Wiring
harness plug X1 (instrument panel & body) disconnected.
Interruption
in body wiring harness between wiring harness plug X1 and wiring harness plug
X13 (rear door, left).
Wiring
harness plug X13 (rear door, left) disconnected.
Interruption
in rear door wiring harness, left, between wiring harness plug X13 and
loudspeaker, rear door, left.
Wiring
harness plug at loudspeaker, rear door, left, disconnected.
Loudspeaker,
rear door, left, defective.
|
|
9
|
Ohmmeter,
range 200 W
|
Door
loudspeakers and their leads (rear door, right)
|
Ter.
9
|
Ter.
13
|
· Measurements in sound processor wiring harness plug
|
3,5
- 4,5 W
|
|
|
|
Possible
faults:
(If
nominal value is not attained)
Interruption
in radio wiring harness, rear, between sound processor wiring harness plug
and wiring harness plug X7.
Wiring
harness plug X7 (instrument panel & radio, rear) disconnected.
Interruption
in instrument panel wiring harness between wiring harness plug X7 und wiring
harness plug X1.
Wiring
harness plug X1 (instrument panel & body) disconnected.
Interruption
in body wiring harness between wiring harness plug X1 and wiring harness plug
X14 (rear door, right).
Wiring
harness plug X14 (rear door, right) disconnected.
Interruption
in rear door wiring harness, right, between wiring harness plug X14 and
loudspeaker, rear door, right.
Wiring
harness plug at loudspeaker, rear door, right, disconnected.
Loudspeaker,
rear door, right, defective.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Time
Allowance
R
2024 10 Sound Processor (Radio Amplifier) - Replace .2
hrs
TC:
27, 29, 54, 86, 87
Add:
01 Check
sound processor .2 hrs
Loudspeakers,
Rear - Replace
TC:
27, 29, 86, 87
+: R
+ R hat shelf
R
2130 00 Both bass loudspeakers .6
hrs
R
2131 00 Right bass loudspeaker .5
hrs
R
2132 00 Left bass loudspeaker .5
hrs
Add:
03 R
+ R electric sunscreen for rear screen .2 hrs
W
1000 00 Vehicle from Parking Place to Workshop and Back .2
hrs
TC:
99
|
