Cabrio GL L4-2.0L (ABA) (2001)
Fuse: Locations

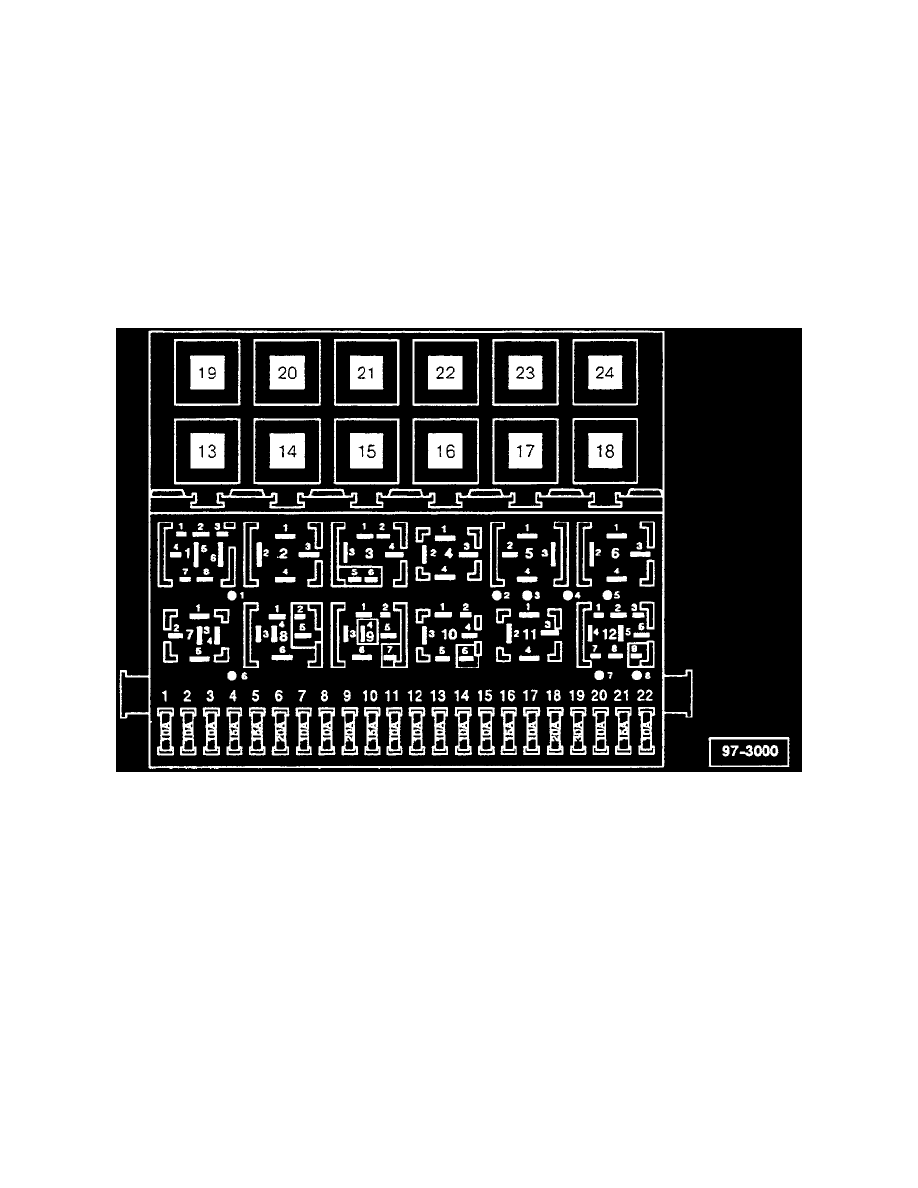

Fuse Arrangement in Fuse/Relay Panel
Fuse colors
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown
5 A
- beige
3 A
- violet
Fuse locations
Fuse Location
Fuse locations for options not shown can be found in the corresponding wiring diagrams.
Amp.
1
-
Headlight, Low Beam, Left (56b)
10
2
-
Headlight, Low Beam, Right (56b)
10
3
-
License Plate Lights (58)
10
4
-
Rear Window Wiper And Washer System
15
5
-
Windshield Wiper/Washer
15
6
-
Fresh Air Blower, A/C (X)
20
7
-
Tail Lights, Right (58R)
10
8
-
Tail Lights, Left (58L)
10
9
-
Rear Window Defogger
20
10
-
Fog Lights
15
11
-
Headlight, High Beam, Left (56a)
10
12
-
Headlight, High Beam, Right (56a)
10
13
-
Horn (15)
10
14
-
Back-Up Lights
10
15
-
Engine Electronics (15)
10
16
-
Power Sunroof, Front Map/Reading Light
15
