Alignment: Service and Repair
Adjusting

FRONT WHEEL CAMBER, ADJUSTING

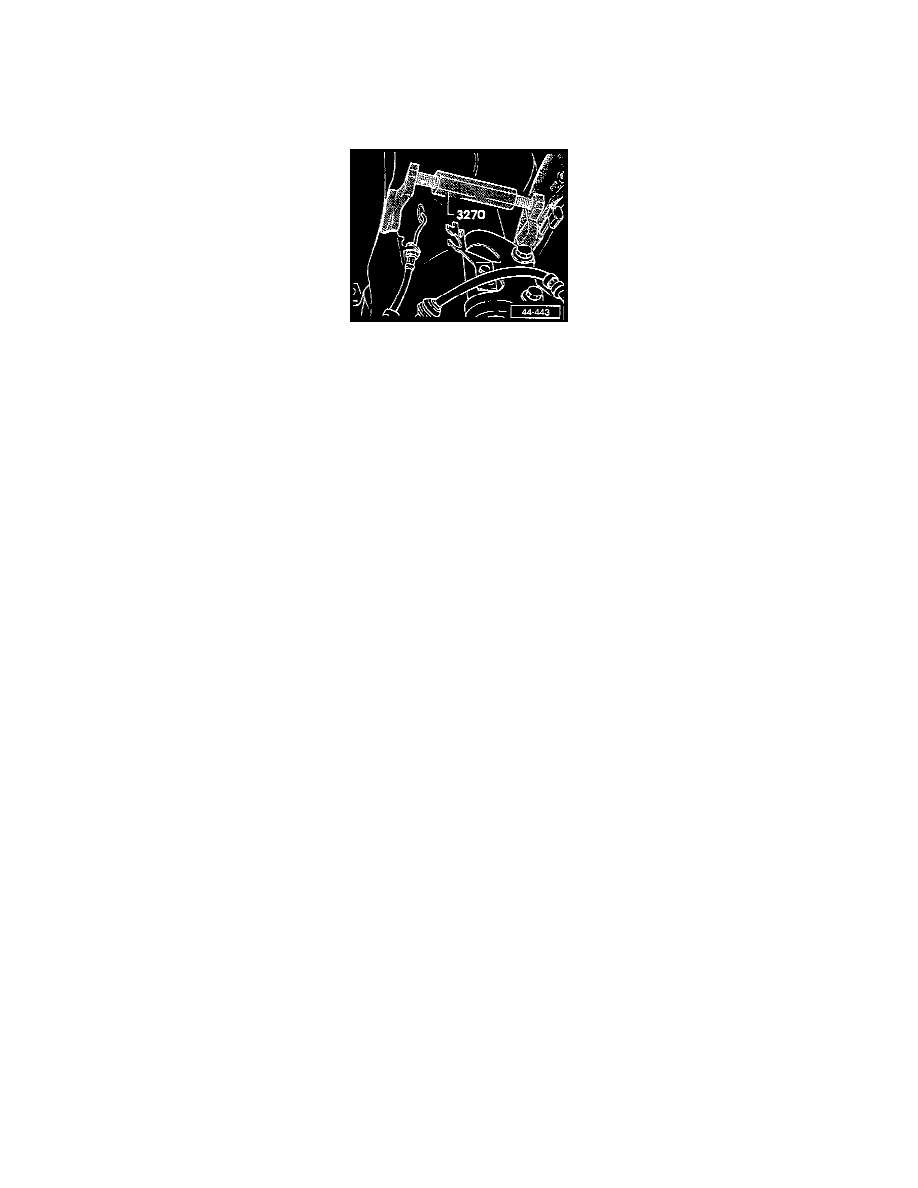

NOTE:  For this procedure, use the tools shown in the following illustration or their equivalents.

-

Install tool and tension slightly.

-

Loosen bolts connecting suspension strut to wheel bearing housing.

-

Set camber to specification by turning tool spindle.

-

Tighten suspension strut/wheel bearing housing bolts.

-

Check camber adjustment and repeat procedure if necessary.

TOE

-

Adjust total toe on right tie rod only, set left left tie rod to length.
