Removing and installing fuel pump, filter, and accumulator for Golf Mk1 (DX,KT 2/84, JH)

4 Cyl injection engine (2 valve), Mechanics
Removing and installing fuel system components
Removing and installing fuel pump, fuel filter, and pressure accumulator (engine codes: DX and KT 2/84 >, JH)

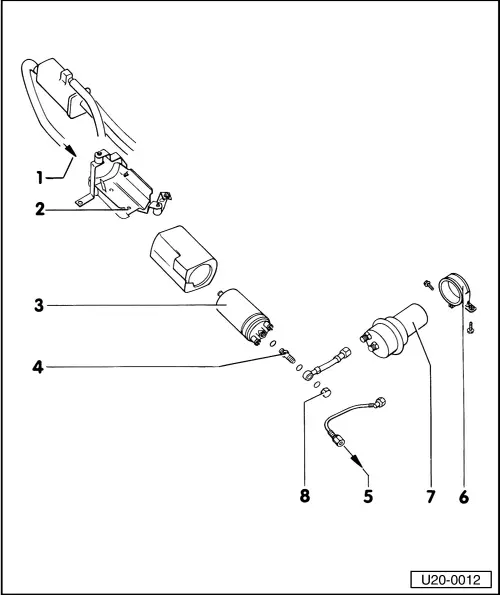

U20-0012

Notes:

  • ◆ Always renew sealing rings during repairs.
  • ◆ Hose connections are secured either with spring clips.
  • ◆ Always replace spring clips with screw-type clips.
  • ◆ Observe rules for cleanliness .
  • ◆ Checking fuel pump relay=> page 20-41 .
  • ◆ Installation position of fuel filter=> page 20-20 , fig.1 .

U20-0012
  • ◆ Renewing fuel filter check valve => page 20-20 , fig.2 .
  • Pipe to fuel pump
  • Bracket
  • Fuel pump
  • Check valve, 20 Nm
  • Pipe to fuel filter
  • Bracket
  • Pressure accumulator
    • ◆ Different versions
           Note part number
  • 20 Nm
