Exterior mirror

Exterior mirror

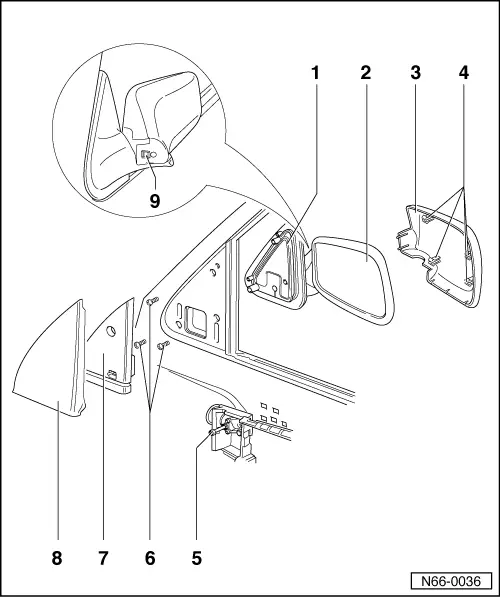

1 - Mirror housing
q   A special passenger's mirror is available for driving school vehicles. Part number see parts catalogue
2 - Mirror glass
q   Clipped in place. To unclip, use removal lever -80 - 200-.
3 - Housing cover
q   Removing: unclip mirror glass and fold mirror housing onto door window. Press locking lugs → Item and → Item together and pull off the housing cover.
q   Material - ABS.
4 - Locking lug
5 - Control (manual)
6 - Countersunk screw
q   2 Nm
7 - Sound insulation
8 - Cover
9 - Locking lug
