Assembly overview

Make

Volkswagen

Model

Golf Mk3

Section

Bumper › Rear bumper ?02.98 › Assembly overview

BodyAssembly overview

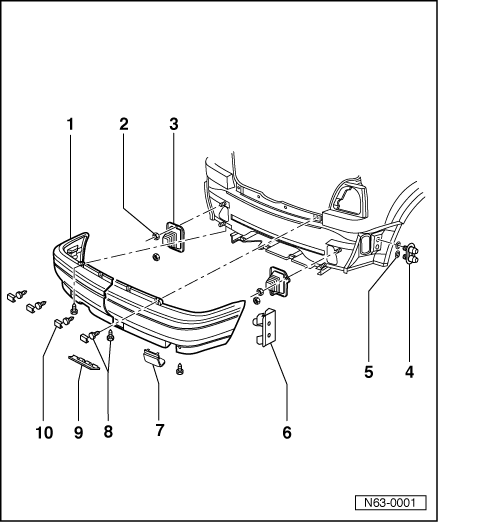

Assembly overview

1 -

Bumpers

q	Cover: Material: PP/EPDM.

q	Removing rear bumper → Chapter.

2 -	Hexagon nut, 25 Nm

3 -	Deformable element

4 -

Guide

5 -	Sealing washer (plastic)

6 -

Clip

7 -	Cover / tow lug

8 -	Hexagon bolts, 4.5 Nm

9 -	Cover / tow bar

10 -	Cover / upper hexagon bolts
