Adjusting reverse gear brake -B1- > < Example:

Golf Mk3

Checking dimensions of planet carrier
Checking dimensions of planet carrier

–  Insert dial gauge in universal measuring tool -VW 382/7- and place tip on bolt of small input shaft.
–  Move small input shaft up and down and read play on dial gauge.
Play:
min. = 0.23 mm
max. = 0.37 mm
  Note
If the planet carrier has been adjusted with reverse gear brake -B1- and freewheel removed, then install reverse gear brake -B1- before installing planet carrier ⇒ Assembling planetary gearbox → Chapter.

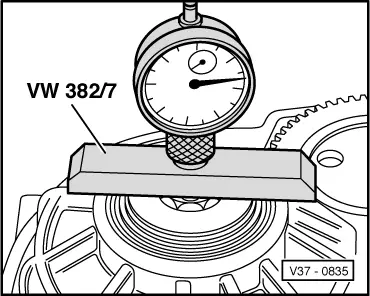

  V37-0835

Adjusting reverse gear brake -B1- > < Example:
