Dismantling and assembling planetary gearbox > < III - Removing and installing freewheel and reverse gear brake -B1-

Golf Mk3

IV - Planet carrier and gearbox housing with input gear and cover
IV - Planet carrier and gearbox housing with input gear and cover
Overview → Chapter
  Note
t  Dismantling planetary gearbox → Chapter
t  Assembling planetary gearbox → Chapter

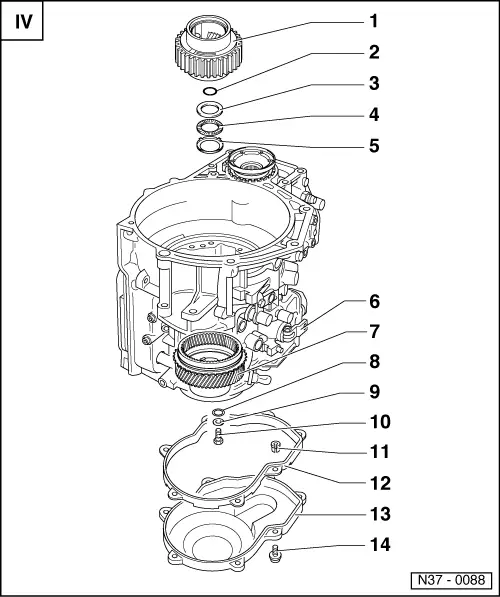

1 - Planet carrier
q   Modified gear ratio in gearboxes from 01.93 → Chapter
q   Small sun gear cannot be removed from gearboxes from 01.93
q   Adjusting → Chapter
2 - O-ring
q   Always renew
q   Insert in planet carrier.
3 - Needle thrust bearing washer
4 - Needle thrust bearing
5 - Needle thrust bearing washer
q   Install smooth side in input gear.
6 - Gearbox housing
7 - Input gear
q   Do not remove to dismantle planetary gearbox
q   Removing and installing input gear or needle thrust bearing for planet carrier → Chapter
8 - Planet carrier shim
q   Determining thickness ⇒ Adjusting planet carrier → Chapter
9 - Washer
10 - Bolt, 30 Nm
q   For small input shaft
11 - Spacer bush
q   Qty. 7, push into gasket
12 - Seal
q   Always renew
13 - Cover
14 - Bolt, 8 Nm
