Note
|

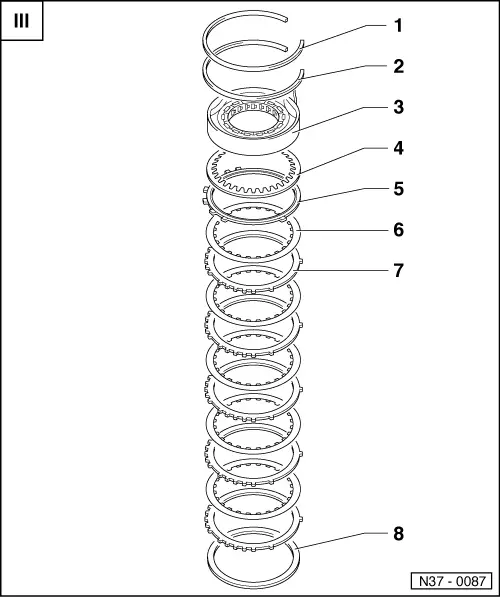

| 1 - | Retaining ring |
| q | For support tube -B2-. |
| 2 - | Retaining ring |
| q | For freewheel. |
| 3 - | Freewheel with -B1- piston |
| q | Before removing freewheel, remove valve body and sealing plugs → Chapter |
| q | Dismantling and assembling → Chapter |
| 4 - | Dished washer |
| q | Convex side faces freewheel. |
| 5 - | Thrust plate -B1- |
| q | Install with flat side facing plates. |
| q | Various thicknesses depending on number of inner plates installed: |
| Gearbox with 4 inner plates |
| q | Through gearbox manufacture date 16 8 2: 7.5 mm (an additional 3.7 mm thick shim → Item is installed) |
| q | From gearbox manufacture date “17 8 2”: 11.1 mm |
| Gearbox with 5 inner plates “7.5 mm” |
| Gearbox 01.93 ► → Chapter |
| q | Gearbox with 4 inner plates “13.5 mm” |
| q | Gearbox with 5 inner plates “10.5 mm” |
| q | Quantity of outer plates -B1- → Chapter |
| 6 - | Inner plate -B1- |
| q | Quantity of outer plates -B1- → Chapter |
| q | Lay in ATF for 15 minutes before installing |
| 7 - | Outer plate -B1- |
| q | Quantity of outer plates -B1- → Chapter |
| 8 - | Shim |
| q | Determining thickness ⇒ Adjusting reverse gear brake -B1- → Chapter |
| q | Additional 3.7 mm thick shim for reverse gear brake -B1- with 4 inner plates through gearbox manufacture date 16 8 2 → Item |
