Golf Mk3
Note
|

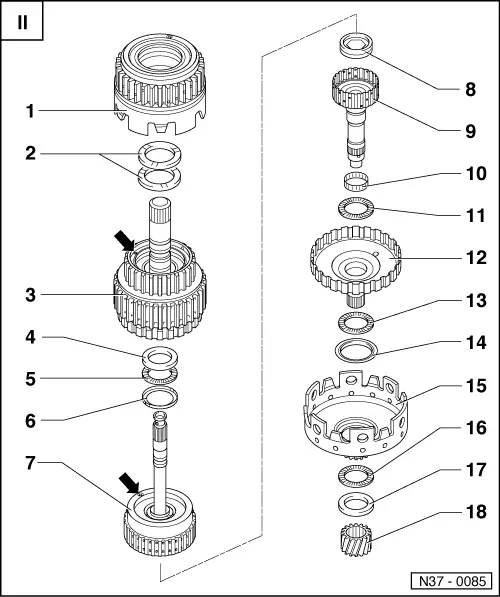

| 1 - | Reverse gear clutch -K2- |
| q | Dismantling and assembling → Chapter |
| 2 - | Shim |
| q | Determining thickness ⇒ Adjusting clutch play between -K1- and -K2- → Chapter |
| q | 1 or 2 shims may be installed |
| 3 - | 1st to 3rd gear clutch -K1- with turbine shaft |
| q | With ball valve -arrow-, dismantling and assembling → Chapter |
| q | Without ball valve (for gearboxes 01.93 ► → Chapter) dismantling and assembling → Chapter |
| 4 - | Needle thrust bearing washer |
| 5 - | Needle thrust bearing |
| 6 - | Needle thrust bearing washer |
| q | Lugs face needle thrust bearing |
| 7 - | 3rd and 4th gear clutch -K3- with pump shaft |
| q | With ball valve -arrow-, dismantling and assembling → Chapter |
| q | 4th gear clutch -K3- without ball valve (for gearboxes 01.93 ► → Chapter) dismantling and assembling → Chapter |
| 8 - | Needle thrust bearing with washer |
| q | Needle thrust bearing faces small input shaft |
| 9 - | Small input shaft |
| q | Modified clutch -K3- 01.93 ► adapted |
| 10 - | Needle bearing |
| 11 - | Needle thrust bearing |
| 12 - | Large input shaft |
| q | Modified clutch -K1- 01.93 ► adapted |
| 13 - | Needle thrust bearing |
| 14 - | Needle thrust bearing washer |
| q | With shoulder. |
| 15 - | Large sun gear |
| q | 27 teeth in gearboxes ► 12.92 |
| q | 24 teeth in gearboxes 01.93 ► |
| 16 - | Needle thrust bearing |
| q | Outer Ø: 41 mm |
| q | For gearboxes 01.93 ► → Chapter, outer Ø: 39.1 mm |
| 17 - | Needle thrust bearing washer |
| 18 - | Small sun gear |
| q | For gearboxes 01.93 ► → Chapter, not removed from planet carrier |
