Golf Mk3
Note
|

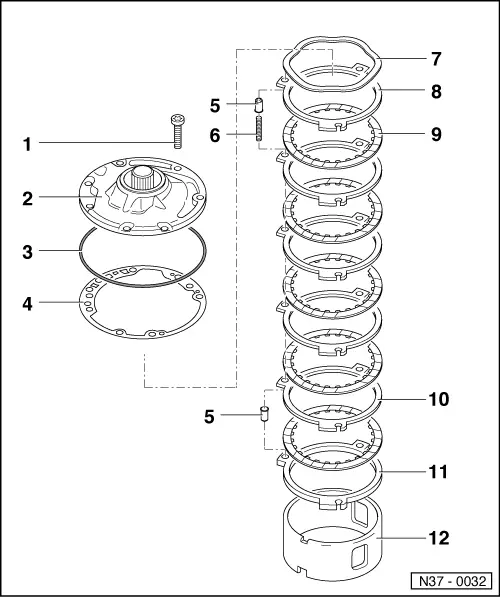

| 1 - | Bolt |
| q | Qty. 7 |
| q | Tighten to 8 Nm and turn 90° further. |
| q | The additional 90° turn may be done in several stages. |
| 2 - | ATF pump with -B2- piston |
| q | Dismantling and assembling → Chapter |
| 3 - | O-ring |
| q | Always renew |
| q | Place on ATF pump |
| 4 - | Seal |
| q | Always renew |
| 5 - | Spring cap, Qty. 6 |
| q | Install 3 spring caps after installing first outer plate. |
| q | Install 3 spring caps before installing last outer plate. |
| 6 - | Spring |
| q | Qty. 3 |
| 7 - | Corrugated washer |
| 8 - | Outer plate -B2- |
| q | Quantity → Chapter |
| q | Determining thickness of outer plate; Adjusting 2nd and 4th gear brake -B2- → Chapter |
| 9 - | Inner plate -B2- |
| q | Quantity → Chapter |
| q | Before installing new inner plates, soak them in ATF for 15 minutes |
| 10 - | Outer plate -B2- |
| q | Always install 2 mm thick outer plates |
| q | Quantity → Chapter |
| 11 - | Outer plate -B2- |
| q | Fit 3 mm thick outer plate to support tube |
| 12 - | Support tube -B2- |
| For -B2- plate set |
| t | Length of -B2- with: |
| q | 4 inner plates - “72.3 mm” |
| q | 5 inner plates - “68.6 mm” |
| q | 6 inner plates - “64.9 mm” |
| t | Quantity of inner plates -B2- → Chapter |
| t | Insert so that notch locates on wedge of freewheel. |
