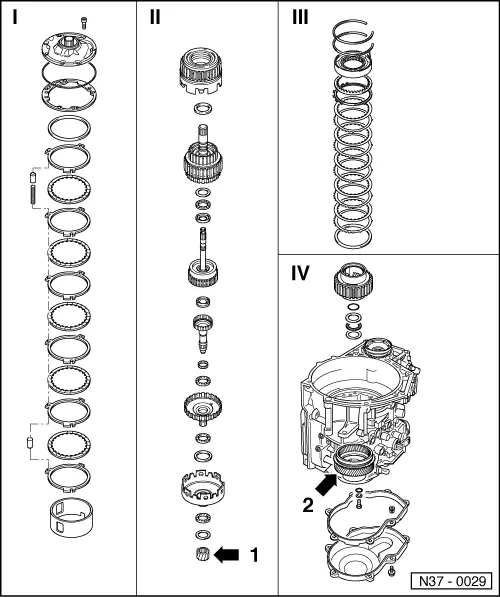

Overview - dismantling and assembling planetary gearbox

Note

t	Dismantling planetary gearbox → Chapter

t	Assembling planetary gearbox → Chapter

I -	Removing and installing ATF pump to support tube → Chapter

II -	Removing and installing reverse clutch -K2- to small sun gear → Chapter

Note

The small sun gear -arrow 1- cannot be removed from planet carrier in gearboxes 01.93 ► → Chapter.

III -

Removing and installing freewheel and reverse gear brake -B1- → Chapter

Note

To remove and install freewheel, valve body with plugs must be removed → Chapter.

IV -	Removing and installing planet carrier → Chapter

Note

t	It is not necessary to remove input gear -arrow 2-.

t	Removing and installing input gear → Chapter.
