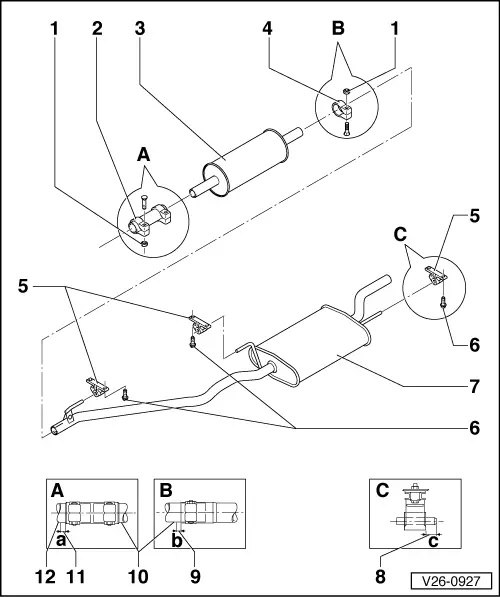

Silencer with mountings - engine codes AAM, ANN

Note

Longitudinally, the exhaust system must be aligned so that the dimensions -a--b- and -c- are adhered.

1 -

40 Nm

2 -	Double clamp

3 -	Front silencer

4 -

Clamp

5 -

Mounting

q	Note various versions → Fig.

6 -

25 Nm

7 -	Rear silencer

8 -	Dimension -c- = at least 10 mm

9 -	Dimension -b- = approx. 5 mm

10 -

Marking

q	Three times on circumference

11 -	Dimension -a- = approx. 5 mm

12 -

Marking

q	Three times on circumference

S = manual gearbox

A = automatic gearbox
