Golf Mk3

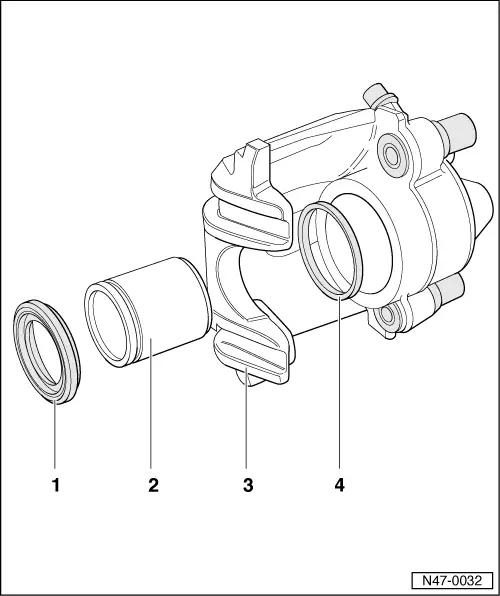

| Repairing front brake caliper, brake caliper VW II |
Note| t | Install complete repair kit when servicing. |
| t | Apply thin coat of brake fluid to brake cylinder, piston and sealing ring. |
| 1 - | Protective cap |
| q | Do not damage when inserting piston. |
| 2 - | Piston |
| q | Removing and installing → Chapter. |
| q | First coat the piston lightly with brake cylinder paste. |
| 3 - | Brake caliper housing |
| 4 - | Sealing ring |
| q | Remove using a screwdriver → Chapter. |
