Special tools, testers and auxiliary items

• ◆ 3316 Removal tool

The removal tool 3316 consists of two identical parts.

Note:

Obtain the code number from the customer before removing the radio. If the radio is replaced, always activate the anti-theft coding =>Page 91-24 . The customer must be informed of the new code number.

Removing:

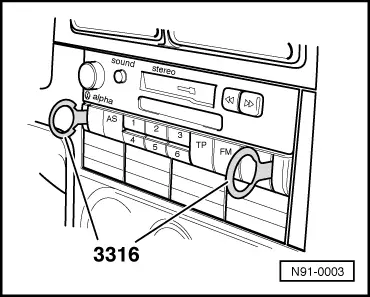

• ‒ → Insert removal tool 3316 in the slots between the buttons -arrows-, until it locates.

• ‒ Slowly pull the radio out of the mounting frame with removal tool 3316.

Note:

When doing this the removal tool 3316 must not be pressed outwards or canted.

To pull out the removal tool the locating lug on the side of the radio must be pressed inwards.

Installing:

• ‒ Pull the removal tool out of the radio.
• ‒ Slide radio squarely into mounting frame, until it locates.
