Special tools, testers and auxiliary items

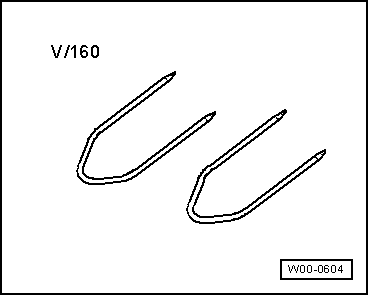

• ◆ -V160 Release tool

Note:

Obtain radio set code number before removing.

Removing:

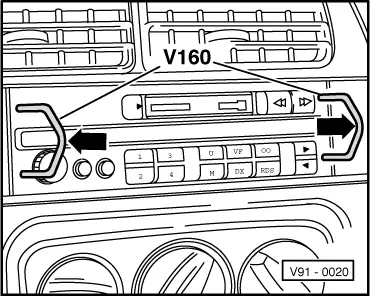

• ‒ → Insert both release tools (special tool -V160) into front of radio as shown.
• ‒ Press release tools in direction of arrow and pull radio out of dash panel.
• ‒ Pull off connectors.

Installing:

• ‒ Pull both release hoops out of radio.
• ‒ Plug in connectors.
• ‒ Secure aerial cable to radio set
• ‒ Carefully slide radio into dash panel, when doing this the rubber bumper in rear bracket must contact stop.

Securing aerial cable to radio set

•      1 -     Radio set
•      2 -     Cable guide
•      3 -     Aerial cable
•      4 -     Rubber buffer

• ‒ Secure cable guide to radio set.
• ‒ Fit rubber buffer.
• ‒ Clip aerial cable into cable guide.
