Golf Mk4

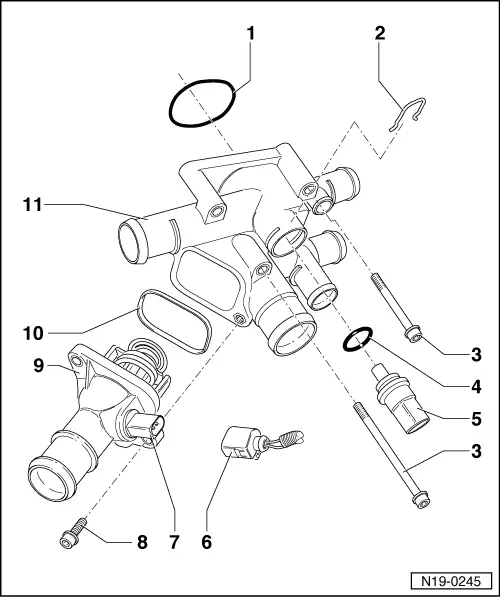

| Dismantling and assembling coolant distribution housing |
| 1 - | Seal |
| q | Renew. |
| 2 - | Securing clip |
| q | Check for secure seating. |
| 3 - | 10 Nm |
| 4 - | O-ring |
| q | Renew. |
| 5 - | Coolant temperature sender -G62- |
| q | With coolant temperature gauge sender -G2-. |
| q | Gold-plated contacts. |
| q | For engine control unit. |
| q | If necessary, release pressure in cooling system before removing. |
| q | Checking: → Rep. Gr.01. |
| 6 - | Connector |
| 7 - | Heating element connection |
| q | 14…16 Ω∼ at 25° C |
| 8 - | 10 Nm |
| 9 - | Map-controlled engine cooling thermostat -F265- |
| q | With connection. |
| q | Checking: → Chapter. |
| q | Opening begins at approx. 105° C. |
| q | Opening lift min. 7 mm. |
| 10 - | Seal |
| q | Renew. |
| 11 - | Coolant distribution housing |
