Volkswagen Golf Mk404 · Vehicle electrics
04 · General

Overview of telematics system

Make
Volkswagen
Model
Golf Mk4
Section
Infotainment › Telematics system › Overview of telematics system
Vehicle electricsOverview of telematics system

Overview of telematics system

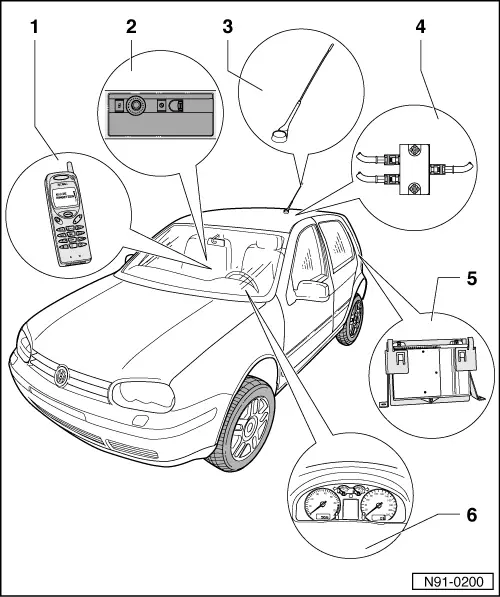

Overview of telematics system – Volkswagen Golf Mk4
1 - Mobile telephone -R54-
2 - Telematics operating unit -E264-
q   Removing and installing → Chapter
3 - Radio/telephone aerial -R51-, navigation aerial -R50-
4 - Aerial filter -R87-
q   Is only installed on vehicles with telematics system and also RNS
q   Removing and installing → Chapter
5 - Telematics control unit -J499-
q   Installed in luggage compartment behind the left-hand side panel trim.
q   Removing and installing → Chapter
6 - Dash panel insert with navigation display unit -J414-
q   Removing and installing → Electrical system; Repair group 90; Dash panel insert; Removing and installing dash panel insert.
