Volkswagen Golf Mk404 · Vehicle electrics
04 · General

General description

Make
Volkswagen
Model
Golf Mk4
Section
Instruments, GCI › Dash panel insert › General description
Vehicle electricsGeneral description
General description
To provide acoustic support to some of the visual displays, the dash panel features a warning buzzer, which is actuated by the control unit.
All warning lamps feature LEDs. No provision has been made for repair of the dash panel insert. In the event of defects, the dash panel insert is renewed as a unit → Chapter.
The dash panel insert is available in different versions depending on the vehicle equipment level:
t  Lowline version with rev counter and digital clock
t  Midline version with rev counter and multi-function indicator
t  Highline version with rev counter, multi-function indicator and navigation display unit
The following components are integrated depending on the version of the dash panel insert:
t  Control unit with display in dash panel insert. -J285-
t  Immobilizer control unit -J362-
t  Speedometer -G21-
t  Rev counter -G5-
t  Fuel gauge -G1-
t  Coolant temperature gauge -G3-
t  Multi-function display -J119-
t  Warning lamps → Chapter
From model year 2000 onwards, there are dash panel inserts for vehicles with flexible service intervals and dash panel inserts for vehicles with fixed service intervals. Refer to the spare parts number.

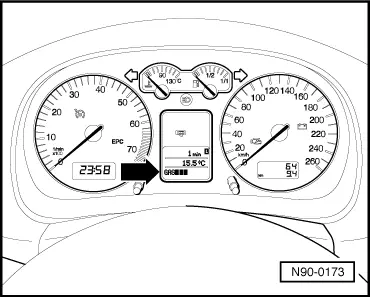

Vehicles with a bi-fuel drive system (petrol/gas operation) have dash panel inserts with an additional segment display -arrow- indicating the gas level in the gas tank.
Vehicles with long-life service are equipped with a dash panel insert which informs the driver of a low oil level by means of an acoustic signal and the illumination of a warning lamp.
When an oil level warning has been issued, the warning can only be reset by opening the bonnet (actuation of the bonnet switch).
  N90-0173
