Overview

Overview
  Note
t  Before disconnecting battery, obtain code for radio having anti-theft coding.
t  With ignition switched off, disconnect battery earth strap.
t  → Electrical system; Rep. gr.27
t  When reconnecting battery, refer to → Electrical system; Rep. gr.27.
t  Grease all bearing points and contact surfaces.
t  Allocate grease using → Electronic parts catalogue (ETKA).

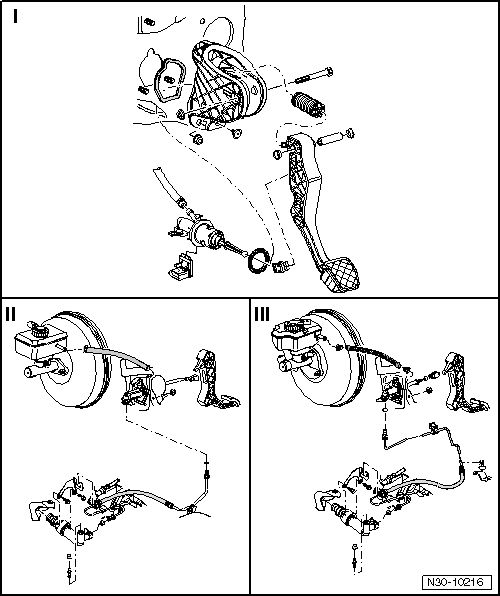

I - Assembly overview - pedal cluster → Chapter
II - Assembly overview - hydraulics (LHD) → Chapter
III - Assembly overview - hydraulics (RHD) → Chapter
