Transporting gearbox

Special tools and workshop equipment required

t	Gearbox mounting support -3336-

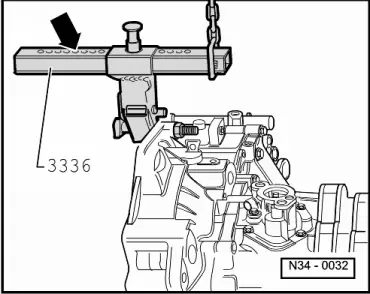

–	Bolt gearbox lifting tackle -3336- to clutch housing.

–	Adjust support beam on sliding piece using locking pin -arrow-.

Number of holes visible = 5.

–	Lift gearbox using workshop crane and gearbox lifting tackle -3336-.

–	Set gearbox aside, for example in a transport container.
