Transporting gearbox
Transporting gearbox
Special tools and workshop equipment required

t  Gearbox mounting support -3336-
  W00-0208

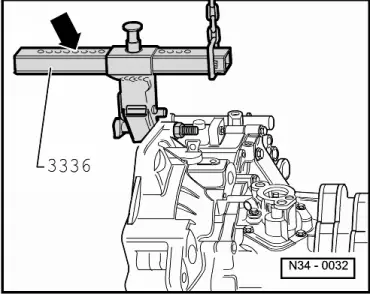

–  Bolt gearbox lifting tackle -3336- to clutch housing.
  A34-0320
–  Adjust support beam on sliding piece using locking pin -arrow-.
No. of holes visible = 5
–  Lift gearbox using workshop crane and gearbox lifting tackle -3336-.
–  Set gearbox aside, for example in a transport container.
  N34-0032
