Golf Mk6

Removing
Removing
–  Release handbrake.
–  Remove centre console → General body repairs, interior; Rep. gr.68.

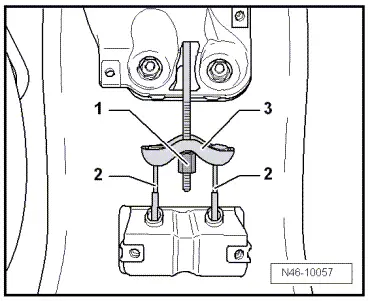

–  Release adjustment nut -1- until relevant handbrake cable -2- can be detached from compensator -3-.
  N46-10057
–  Press lever on brake caliper -2- in direction of arrow and detach handbrake cable -3-.
–  Compress locking lugs -1- together and pull handbrake cable out of bracket on brake caliper.
  N46-10170
–  First pull handbrake cable -1- off locking lugs, then pull completely out of bracket -2-.
  N46-10171
–  Detach handbrake cable from bracket -1- and pull handbrake cable out of guide tube -2-.
  A46-0304
