Golf Mk6

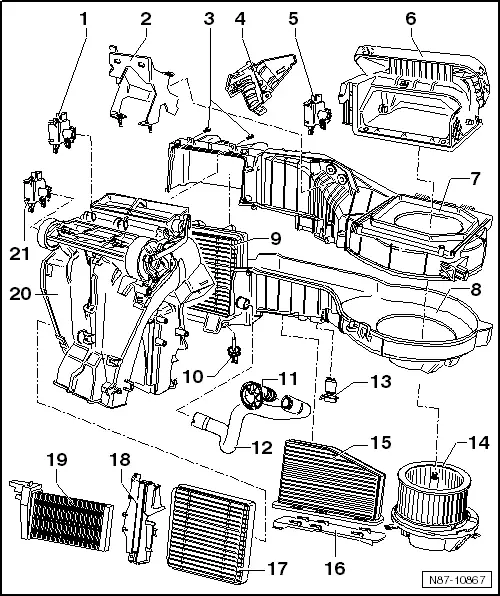

| Dismantling and assembling heater and air conditioning unit -VX1-, „manually regulated air conditioning system“ |
| 1 - | Temperature flap control motor -V68- |
| q | Checking: vehicle diagnosis, testing and information system -VAS 5051B-. |
| q | Removing and installing → Chapter |
| 2 - | Bracket |
| 3 - | Bolts |
| q | Bolts must be removed to separate air distribution housing from evaporator housing. |
| 4 - | Cover |
| 5 - | Control motor for fresh air and air recirculation flap and air flow flap -V425- |
| q | Checking: vehicle diagnosis, testing and information system -VAS 5051B-. |
| q | Removing and installing → Chapter |
| 6 - | Air intake housing |
| q | With air recirculation flap. |
| 7 - | Evaporator housing - upper part |
| q | Dismantling and assembling evaporator housing → Chapter |
| 8 - | Evaporator housing - lower part |
| q | Dismantling and assembling evaporator housing → Chapter |
| 9 - | Evaporator |
| q | Removing and installing → Chapter |
| 10 - | Evaporator temperature sensor -G308- or evaporator output temperature sender -G263- |
| q | Checking: vehicle diagnosis, testing and information system -VAS 5051B-. |
Note| One of the two component designations appears depending on software. The functions are identical. |
| q | Removing and installing → Chapter |
| 11 - | Connections for glove compartment cooling |
| 12 - | Cooling hose for glove compartment |
| 13 - | Fresh air blower series resistor with overheating fuse -N24- |
| q | Removing and installing → Chapter |
| 14 - | Fresh air blower -V2- |
| q | Removing and installing → Chapter |
| 15 - | Dust and pollen filter |
| q | With activated charcoal filter. |
| q | Removing and installing → Chapter |
| 16 - | Cover |
| q | For dust and pollen filter. |
| 17 - | Heat exchanger |
| q | Removing and installing → Chapter |
| 18 - | Heat exchanger trim |
| 19 - | Auxiliary air heater element -Z35- |
| q | Up to week 44/06. |
| q | Removing and installing → Chapter |
| 20 - | Air distribution housing |
| 21 - | Air distribution flap control motor -V428- |
| q | Checking: Vehicle diagnosis, testing and information system -VAS 5051B- (or later model). |
| q | Removing and installing → Chapter |
| q | Renewing: initiate basic setting using vehicle diagnosis, testing and information system -VAS 5051B- (or later model) → Chapter. |
