Golf Mk6

Securing engine on engine and gearbox support
Securing engine on engine and gearbox support
Before carrying out repair work, secure engine in engine and gearbox support -VAS 6095/1- using universal mounting -VAS 6095-.

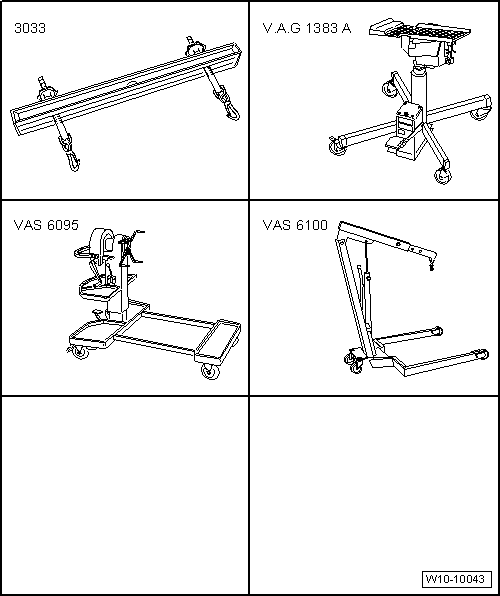

Special tools and workshop equipment required
t  Lifting tackle -3033-
t  Engine and gearbox jack -V.A.G 1383 A-
t  Workshop hoist -VAS 6100-
t  Engine and gearbox support -VAS 6095-

Procedure
–  Unbolt gearbox.
–  Secure torque converter against „falling out“ after separating engine from gearbox in vehicles with automatic gearbox.

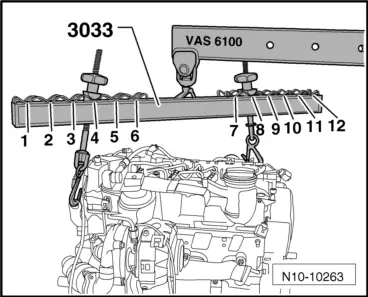

–  Attach lifting tackle -3033- as follows and lift from engine and gearbox jack -VAS 6100- using workshop crane -V.A.G 1383 A-.
Flywheel end: position 4.
Vibration damper end: position 8.
–  Secure engine on engine and gearbox support -VAS 6095/1- using universal mounting -VAS 6095-.
  N10-10263
