Volkswagen Workshop Service and Repair Manuals > Golf Mk6 > Power unit | 4-cylinder injection engine (1.4 l direct injection engine, turbocharger and supercharger) | Enginecrankshaft group, pistons | Cylinder block, gearbox end | Removing and installing sealing flange on gearbox side | B - Attaching assembling toolT10134 with sealing flange on crankshaft flange

B - Attaching assembling toolT10134 with sealing flange on crankshaft flange

B - Attaching assembling tool -T10134- with sealing flange on crankshaft flange

l	Crankshaft flange must be free of oil and grease.

l	Engine positioned at TDC No. 1 cylinder.

–	Screw hexagon nut -B- to end of threaded spindle.

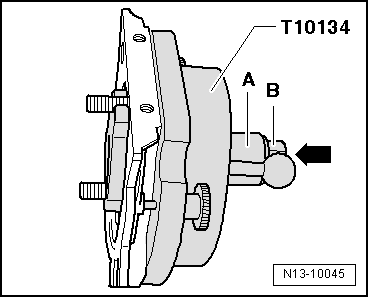

–	Press threaded spindle of assembly tool -T10134- in direction of arrow, until hexagon nut -B- lies against assembly housing -A-.

–	Align flat side of assembly housing on sump side of crankcase sealing surface.

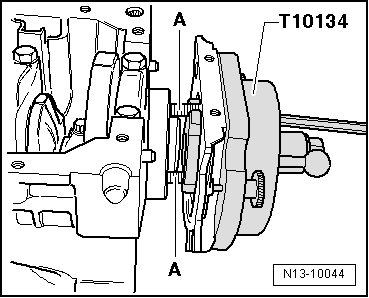

–	Secure assembly tool -T10134- to crankshaft flange using hexagon socket head bolts -A-.

Note

Screw hexagon socket head bolts -A- into crankshaft flange (approx. 5 full turns).

–	To guide sealing flange, screw two M6x35 mm bolts -A- into cylinder block.
