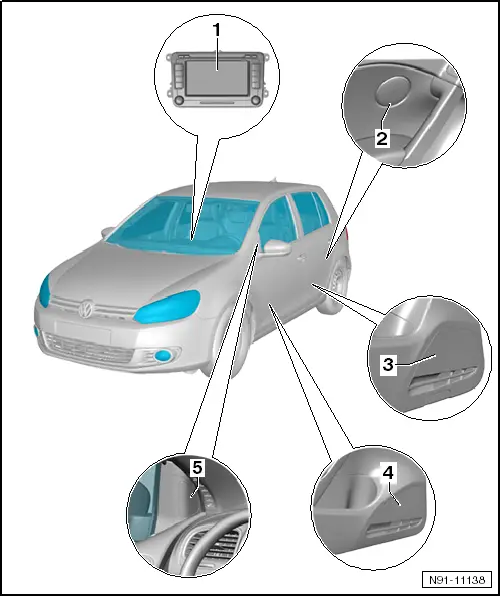

| Overview of loudspeaker system, Golf saloon |
Note | t
| The sound system used in front in conjunction with radio unit „RCD 210“ consists of a 2-way system having a bass loudspeaker and a treble speaker in each front door. In the rear, an optional 2-way system can be additionally installed with a bass loudspeaker and a treble loudspeaker in each door. |
| t
| The sound system used in front in conjunction with radio units „RCD 310“ and „RNS 310“ consists of a 2-way system having a bass loudspeaker and a treble speaker in each front door. In the rear, an optional 2-way system can be additionally installed with a bass loudspeaker and a treble loudspeaker in each door. More powerful loudspeakers are installed in conjunction with the „Dynaudio“ sound system amplifier. |
| t
| The sound system used in front in conjunction with radio units „RCD 510“ and „RNS 510“ consists of a 2-way system having a bass loudspeaker and a treble speaker in each front door. In the rear, a 2-way system with one bass loudspeaker and one treble loudspeaker is installed in each door. More powerful loudspeakers are installed in conjunction with the „Dynaudio“ sound system amplifier. |
| t
| All loudspeakers are passive loudspeakers. |
|
|
|
