Overview of loudspeaker system, Golf Plus
Overview of loudspeaker system, Golf Plus
  Note
t  The sound system used in front in conjunction with radio unit „RCD 210“ consists of a 2-way system having a bass loudspeaker and a treble speaker in each front door. In the rear, an optional 2-way system can be additionally installed with a bass loudspeaker and a treble loudspeaker in each door.
t  The sound system used in front in conjunction with radio units „RCD 310“ and „RNS 310“ consists of a 2-way system having a bass loudspeaker and a treble speaker in each front door. In the rear, an optional 2-way system can be additionally installed with a bass loudspeaker and a treble loudspeaker in each door. In conjunction with the sound system amplifier, an additional mid-range loudspeaker is installed in the front and rear loudspeakers are installed as standard.
t  The sound system used in front in conjunction with radio units „RCD 510“ and „RNS 510“ consists of a 3-way system having a bass loudspeaker, a mid-range loudspeaker and a treble speaker in each front door. A 2-way system with a bass loudspeaker and a treble loudspeaker in each door is installed in the rear of the vehicle. More powerful loudspeakers are installed in conjunction with the sound system amplifier.
t  All loudspeakers are passive loudspeakers.

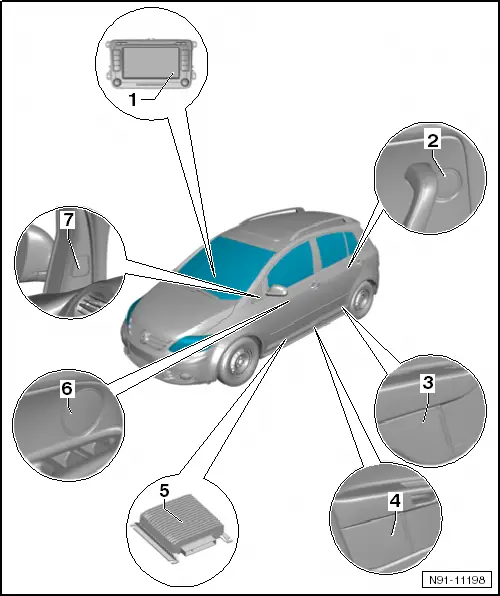

1 - Control unit with display for radio and navigation -J503- or radio -R-
q   Removing and installing → Chapter
2 - Rear right treble loudspeaker -R16- and rear left treble loudspeaker -R14-
q   Installed in rear left and right door trims
q   Removing and installing → Chapter
3 - Rear right bass loudspeaker -R17- and rear left bass loudspeaker -R15-
q   Installed in rear left and right door trims
q   Removing and installing → Chapter
4 - Front right bass loudspeaker -R23- and front left bass loudspeaker -R21-
q   Installed in left and right doors
q   Removing and installing → Chapter
5 - Sound system amplifier -R12-
6 - Front right mid-range loudspeaker -R104- and front left mid-range loudspeaker -R103-
q   Installed in door trim panel in both front doors
q   Only with high-end radio units or in conjunction with the sound system amplifier
q   Removing and installing → Chapter
7 - Front right treble loudspeaker -R22- and front left treble loudspeaker -R20-
q   Installed in left and right doors
q   Removing and installing → Chapter
