Golf Mk6

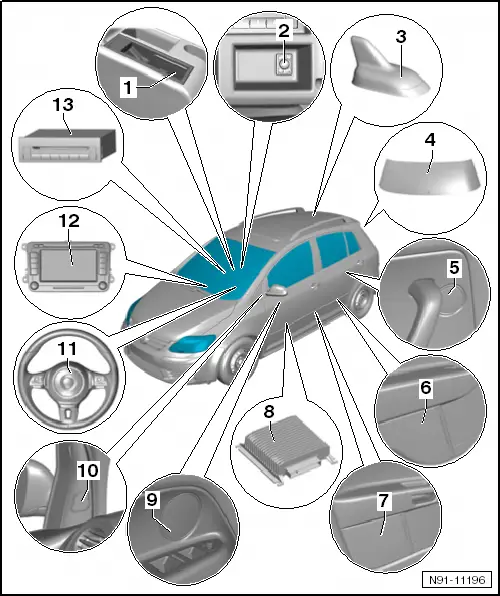

| Overview of radio navigation system „RNS 510“, Golf Plus |
| 1 - | Multimedia system control unit -J650- |
| q | Installed in storage compartment of centre armrest |
| q | For further information, refer to chapter Multimedia control unit → Chapter. |
| q | Optional installation of „CD changer“ or „multimedia control unit“. Both systems cannot be fitted together since the fitting location is the same for both. |
| 2 - | Connection for external audio sources -R199- |
| q | Installed in storage compartment of centre armrest |
| q | For further information, refer to chapter Connection for external audio sources -R199- → Chapter. |
| 3 - | Aerial for telephone, navigation and auxiliary heating remote control -R66- |
| q | Installed on rear of roof |
| q | Only installed when a telephone or an auxiliary heater is factory fitted in addition to the radio |
| q | For further information, refer to chapter Aerial systems → Chapter. |
| 4 - | Rear window aerial -R130- |
| 5 - | Rear right treble loudspeaker -R16- and rear left treble loudspeaker -R14- |
| q | Installed in rear left and right side panel trims |
| q | For further information, refer to chapter Loudspeaker systems → Chapter. |
| 6 - | Rear right bass loudspeaker -R17- and rear left bass loudspeaker -R15- |
| q | Installed in rear left and right side panel trims |
| q | For further information, refer to chapter Loudspeaker systems → Chapter. |
| 7 - | Front right bass loudspeaker -R23- and front left bass loudspeaker -R21- |
| q | Installed in left and right doors |
| q | Mid-range sounds are handled by the bass and treble loudspeakers. |
| q | For further information, refer to chapter Loudspeaker systems → Chapter. |
| 8 - | Amplifier -R12- |
| q | Installed under left front seat |
| q | For more information, see the chapter on amplifier for sound system → Chapter |
| 9 - | Front right mid-range loudspeaker -R104- and front left mid-range loudspeaker -R103- |
| q | Installed in door trim panel in both front doors |
| q | Only with high-end radio units or in conjunction with the sound system amplifier |
| q | For further information, refer to chapter Loudspeaker systems → Chapter. |
| 10 - | Front right treble loudspeaker -R22- and front left treble loudspeaker -R20- |
| q | Installed in left and right doors |
| q | For further information, refer to chapter Loudspeaker systems → Chapter. |
| 11 - | Multifunction buttons on left in steering wheel -E440- and multifunction buttons on right in steering wheel -E441- |
| q | For further information, refer to chapter Multifunction steering wheel → Chapter. |
| 12 - | Control unit with display for radio and navigation -J503- |
| q | Removing and installing → Chapter |
| q | Overview of connectors → Chapter |
| q | Anti-theft coding → Chapter |
| 13 - | CD changer -R41- |
| q | 6-disc CD changer |
| q | Installed in storage compartment of centre armrest |
| q | For further information, refer to chapter CD changer → Chapter. |
| q | Optional installation of „CD changer“ or „multimedia control unit“. Both systems cannot be fitted together since the fitting location is the same for both. |
