Golf Mk6
Vehicle electrics
Communication / Infotainment
Sound system amplifier / moving_and_installing_amplifier/">Removing and installing amplifier
Removing:
Removing:
Removing:
Before beginning dismantling work, perform the following steps:
–
Switch off ignition and all electrical consumers and remove ignition key.
The amplifier is installed under the left front seat.
–
Move the seat as far back and as far up as possible.
–

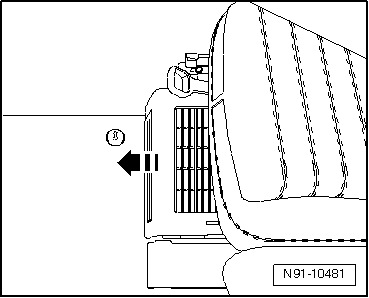

Unclip the cover in direction of
-arrow-
underneath the seat.
–

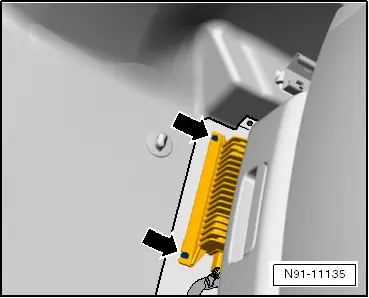

Remove bolts
-arrows-
in amplifier.
–
Remove amplifier until you can access connector of amplifier.
–

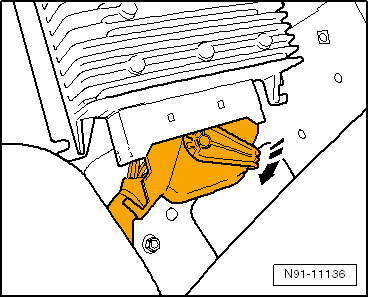

Move locking lever in direction of
-arrow-
, connector will then be pressed out of amplifier.
–
Remove amplifier.
