Timing Component Alignment Marks: Locations
Caution: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

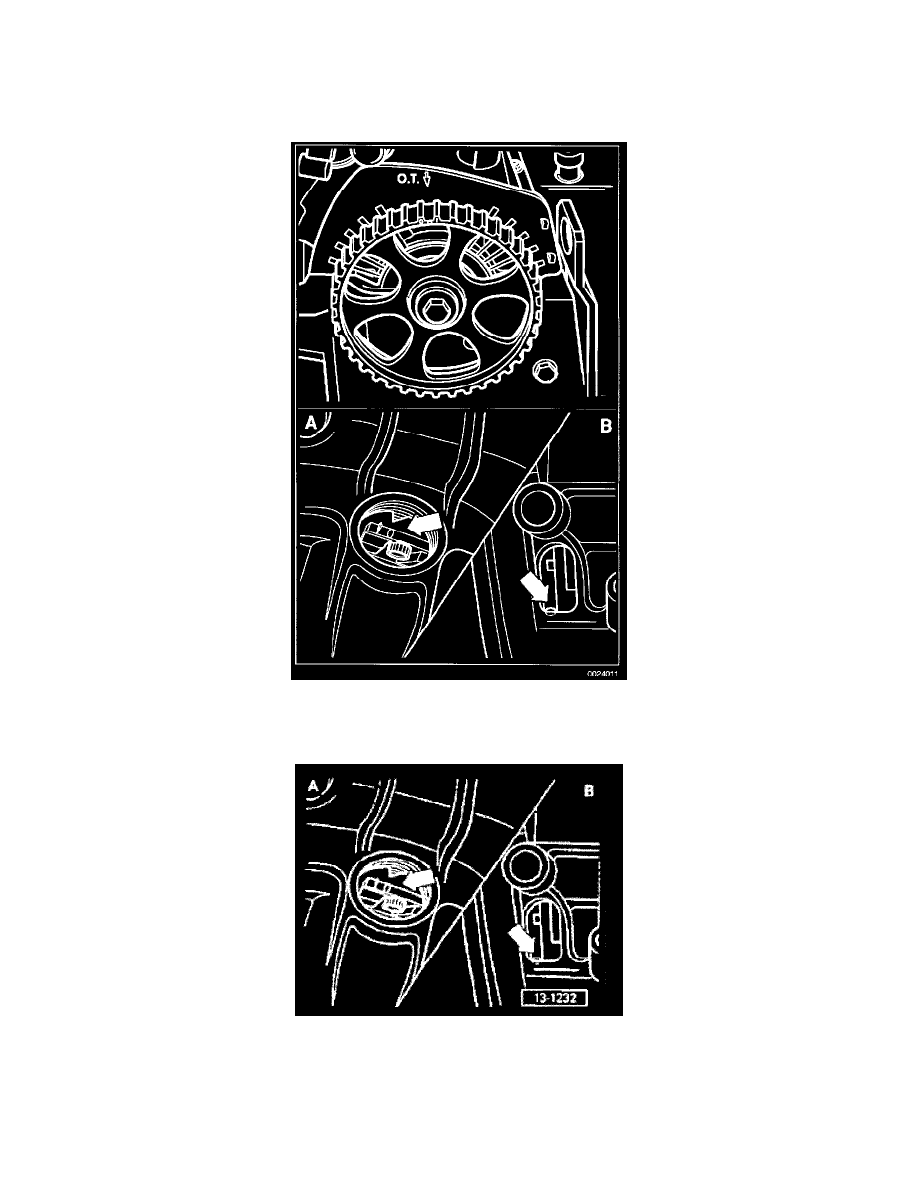

Timing Component Alignment Marks
Camshaft Drive Belt Alignment Marks
Check that the "OT" mark on camshaft sprocket aligns with "OT" mark on rear cover.
Check that the crankshaft is at TDC.
