GTI L4-2.0L Turbo (BPY) (2007)
/Page-480001.png)

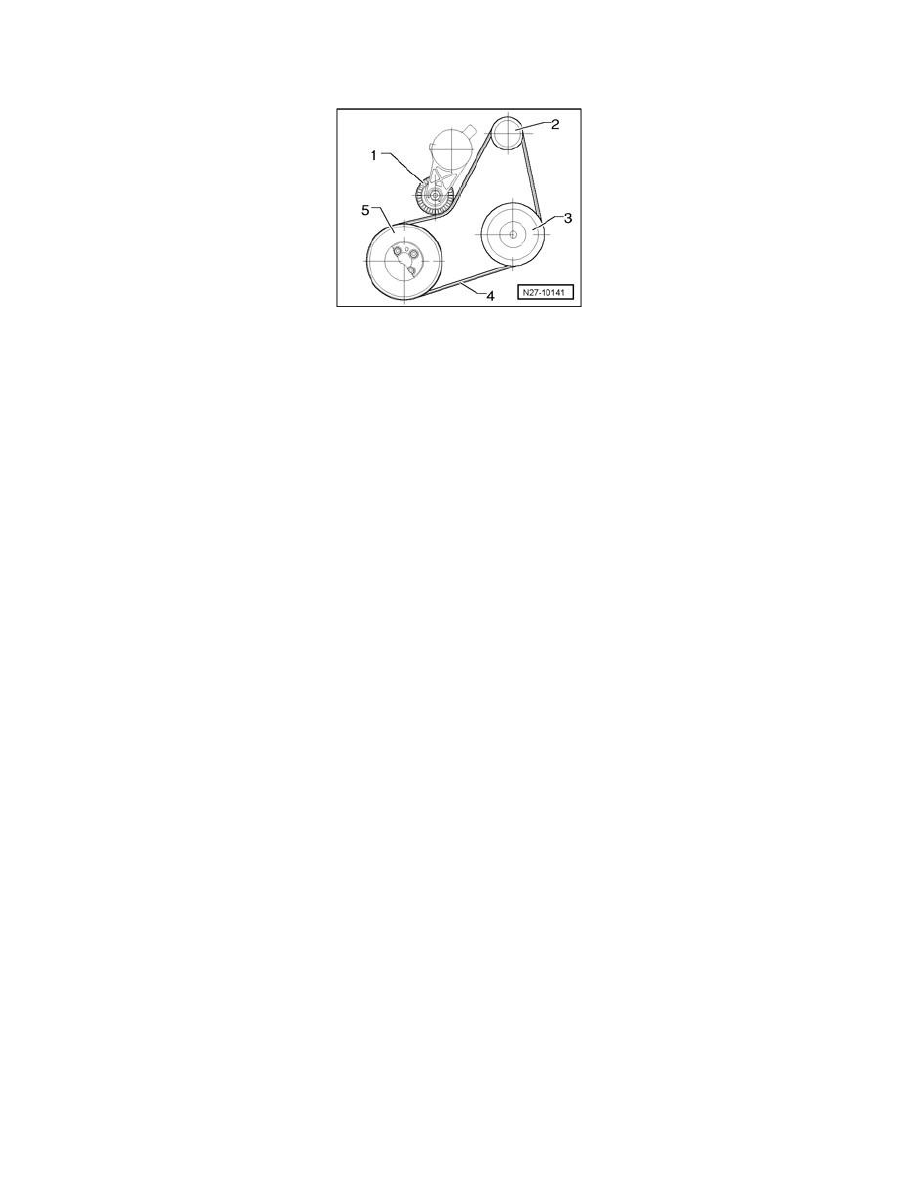

Drive Belt: Diagrams
Ribbed Belt - 2.0L TFSI Engine, Routing
Vehicles with A/C:
1. Tensioner roller
2. Ribbed belt pulley - generator
3. Ribbed belt pulley - A/C compressor
4. Ribbed belt
5. Ribbed belt pulley - crankshaft
