Drive Belt: Diagrams

Make

Volkswagen

Model

Jetta

Engine

L4-1.9L DSL Turbo (BRM)

Year

2006

Section

Drive Belt › Diagrams

MaintenanceDiagrams · page 1 of 2

Drive Belt: Diagrams

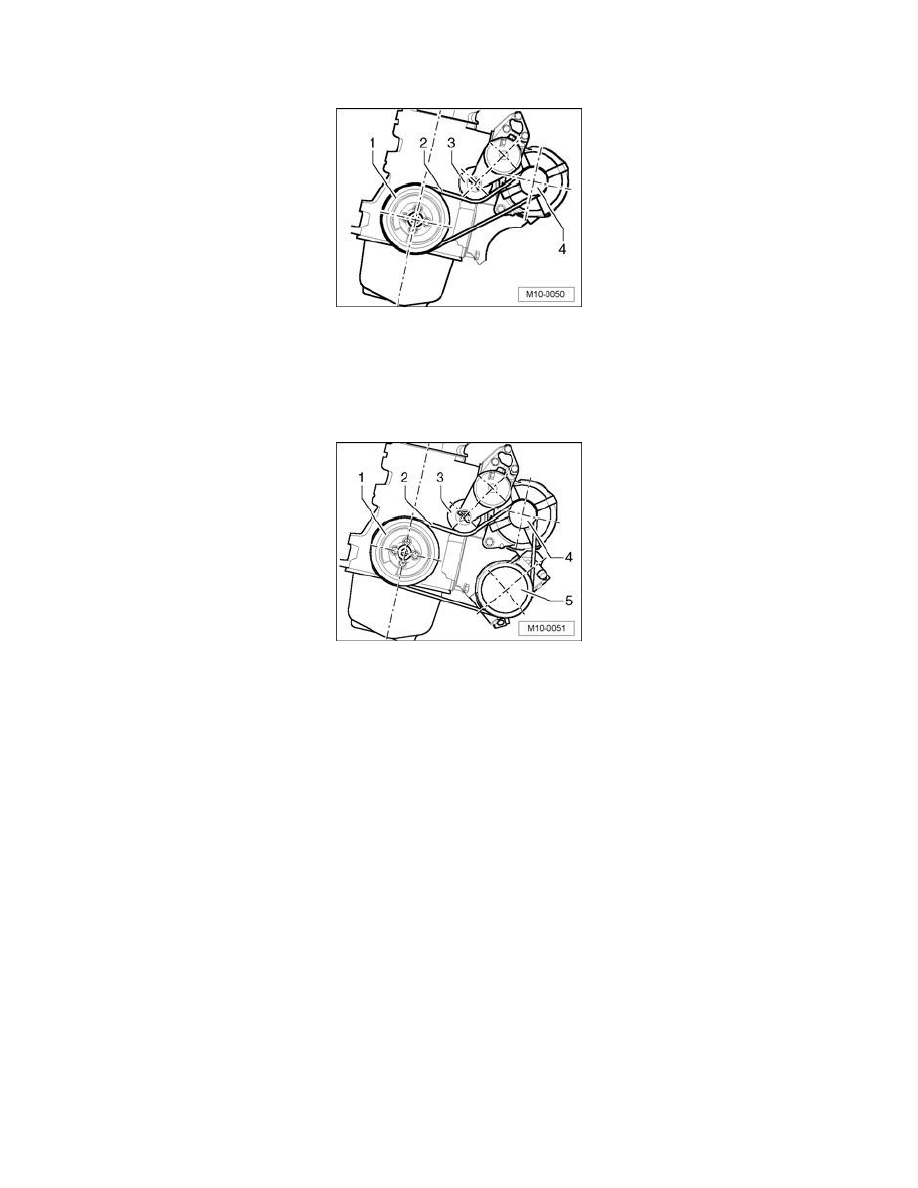

Belt drive without air conditioning compressor

1. Belt pulley - crankshaft
2. Ribbed belt
3. Tensioning roller
4. Belt pulley - generator

Belt drive with air conditioning compressor



1. Belt pulley - crankshaft
2. Ribbed belt
3. Tensioning roller
4. Belt pulley - generator
5. Belt pulley - air conditioning compressor
