Oil Filter: Service and Repair

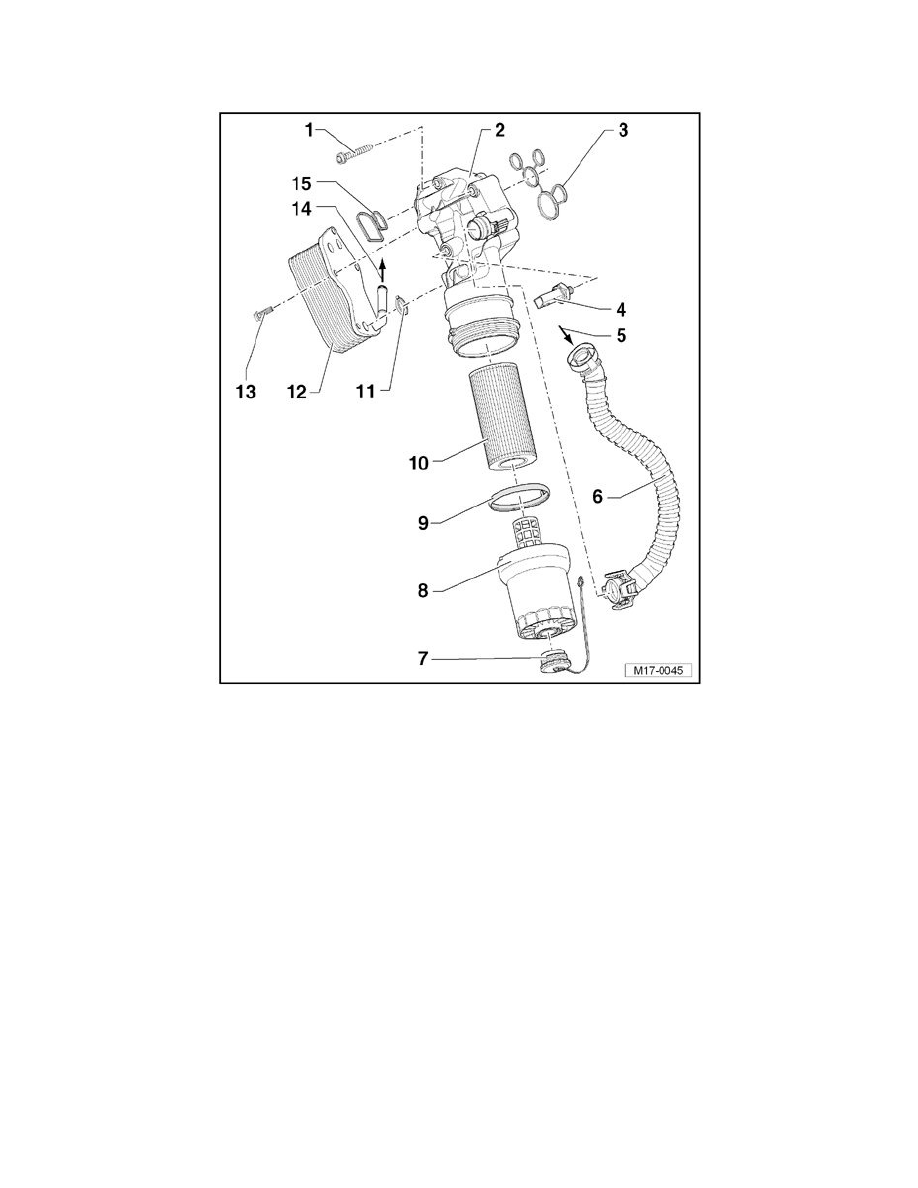

Oil Filter Bracket with Attachments Overview

1

Bolt, 25 Nm

2

Oil filter bracket

‹› Removing:

-

Drain the cooling, refer to --> [ Draining and Filling ] See: Engine, Cooling and Exhaust/Cooling System/Service and Repair/Cooling System,
Draining and Filling.

-

Remove the intake manifold, refer to --> [ Intake Manifold ] See: Engine, Cooling and Exhaust/Engine/Intake Manifold/Service and Repair/Intake
Manifold.

-

Remove the connection for the thermostat.

-

Disconnect the coolant hose from the thermostat housing.

-

Drain the oil filter housing. Refer to --> [ Oil Filter Housing, Draining ] See: Engine, Cooling and Exhaust/Engine/Engine Lubrication/Oil Filter
Housing/Service and Repair/Procedures and remove.

-

Loosen the intake manifold support.

-

Remove the oil filter bracket, the vent hose- item 6 - remains connected.

3

Gasket

‹› Always replace.
