Jetta L5-2.5L (CBTA) (2008)
/Page-76003.png)

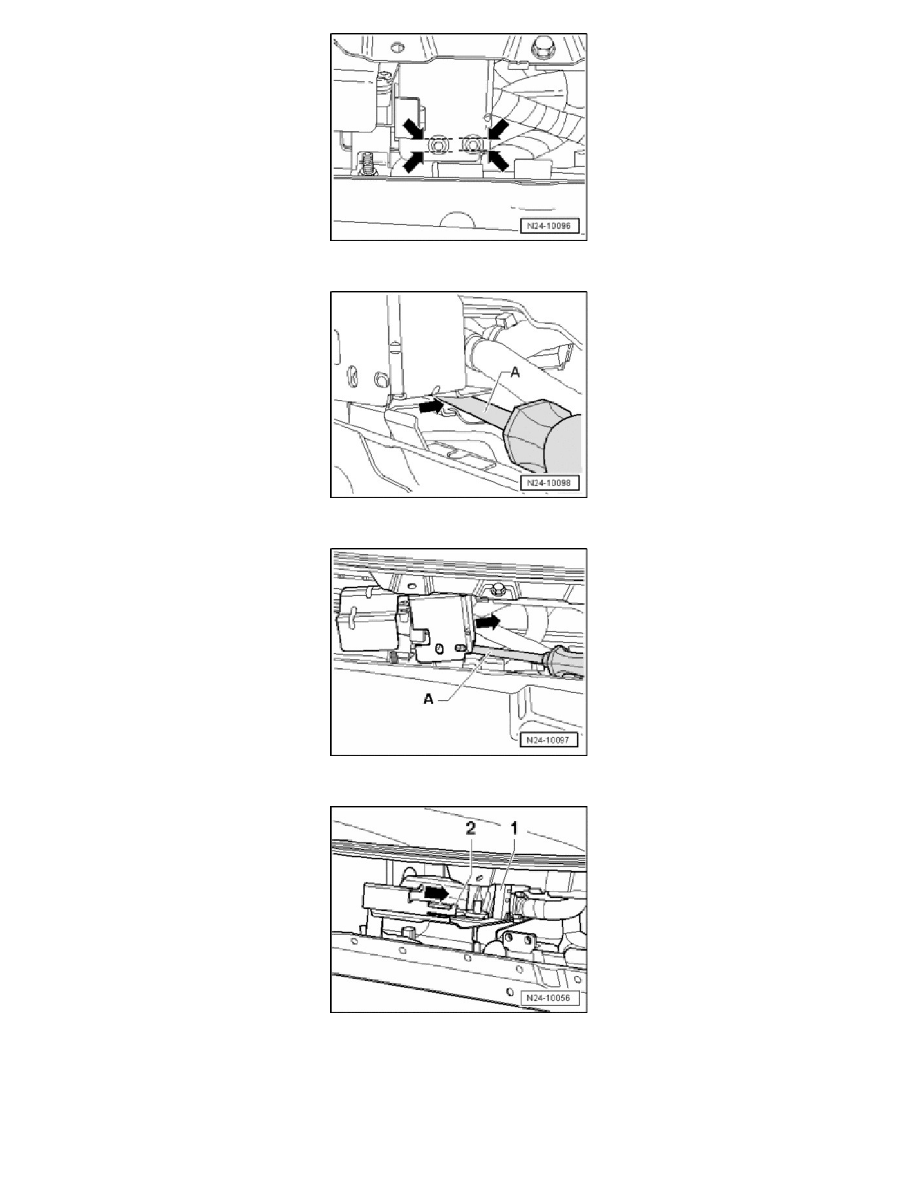

NOTE: If bolts cannot be removed, saw into heads of shear bolts so that two parallel surfaces are formed - arrows - and then remove them.
-
Insert a screwdriver - A - between protective housing and retaining plate - arrow -.
-
Pry protective housing upward using screwdriver - A - and pull it off sideways from retaining plate - arrow -.
-
Disengage forward harness connector - 1 - from Engine Control Module (ECM) and disconnect it.
-
Pry up locking mechanism - 2 - slightly.
-
Then slide Engine Control Module (ECM) out of retainer - arrow -.
-
Now disengage rear harness connector from Engine Control Module (ECM) and disconnect it.
Installing
-
Connect rear harness connector to Engine Control Module (ECM) and engage it.
