Passat (B3)

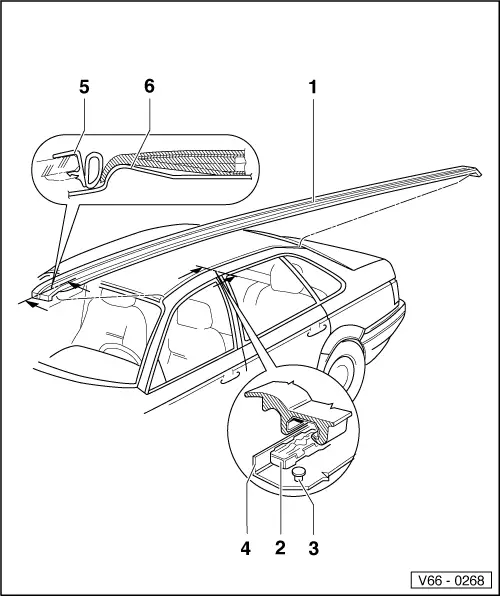

| Roof moulding (saloon) |
| 1 - | Roof moulding |
| q | Removing - starting from windscreen, lever off with soft plastic wedge → Chapter |
| q | Do not bend roof moulding |
| q | Installing - renew clips, position roof moulding on roof frame/windscreen (see cross sectional diagram) and fit in clips by striking with hand |
| 2 - | Clip (qty. 7) |
| q | Renewing - use only once |
| q | Removing → Chapter |
| 3 - | T-pin |
| 4 - | Roof frame flange |
| 5 - | Surround with hose profile for windscreen |
| 6 - | Roof frame |
